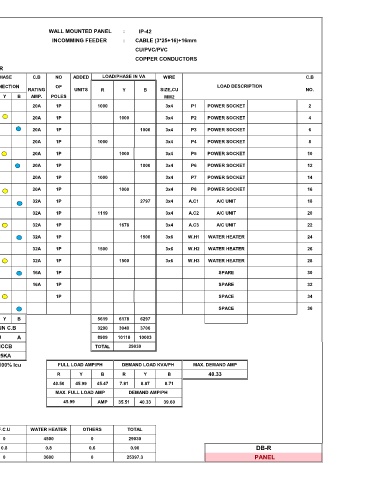

PROJECT NAME : يناطحقلا ببشم لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-ROOF INCOMMING FEEDER : CABLE (3*25+16)+16mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 63 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 360 1P 16A 20A 1P 1000 3x4 P1 POWER SOCKET 2
3 LIGHTING L2 3x3 360 1P 16A 20A 1P 1000 3x4 P2 POWER SOCKET 4
5 LIGHTING L3 3x3 563 1P 16A 20A 1P 1000 3x4 P3 POWER SOCKET 6
7 LIGHTING L4 3x3 375 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 8
9 LIGHTING L5 3x3 730 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 10
11 LIGHTING L6 3x3 693 1P 16A 20A 1P 1000 3x4 P6 POWER SOCKET 12
13 LIGHTING L7 3x3 355 1P 16A 20A 1P 1000 3x4 P7 POWER SOCKET 14
15 SOCKET S1 3x4 600 1P 20A 20A 1P 1000 3x4 P8 POWER SOCKET 16
17 SOCKET S2 3x4 450 1P 20A 32A 1P 2797 3x4 A.C1 A/C UNIT 18
19 SOCKET S3 3x4 750 1P 20A 32A 1P 1119 3x4 A.C2 A/C UNIT 20
21 SOCKET S4 3x4 1000 1P 20A 32A 1P 1678 3x4 A.C3 A/C UNIT 22
23 SOCKET S5 3x4 600 1P 20A 32A 1P 1500 3x6 W.H1 WATER HEATER 24
25 SOCKET S6 3x4 1450 1P 20A 32A 1P 1500 3x6 W.H2 WATER HEATER 26
27 SOCKET S7 3x4 1250 1P 20A 32A 1P 1500 3x6 W.H3 WATER HEATER 28
29 SOCKET S8 3x4 1400 1P 20A 16A 1P SPARE 30
31 SPARE 1P 16A 16A 1P SPARE 32
33 SPARE 1P 16A 1P SPACE 34
35 SPARE SPACE 36
3290 3940 3706 R Y B 5619 6178 6297
MAIN C.B 3290 3940 3706
100 A 8909 10118 10003
MCCB TOTAL 29030
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 40.33
ELR : EARTH LEAKAGE 30 mA 40.50 45.99 45.47 7.81 8.87 8.71
MAX. FULL LOAD AMP DEMAND AMP/PH
45.99 AMP 35.51 40.33 39.60
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 3436 7500 8000 5594 0 4500 0 29030
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-R
ACTUAL LOAD 3092.4 6750 7200 4754.9 0 3600 0 25397.3 PANEL
