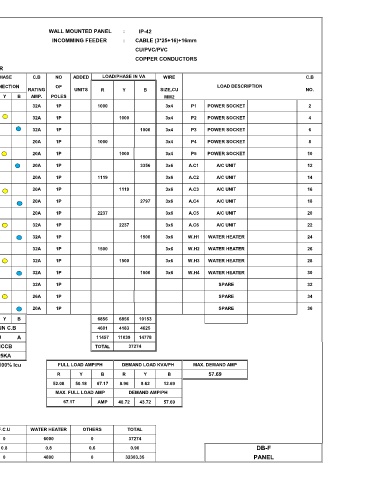

PROJECT NAME : يفايعلا نسح لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-F INCOMMING FEEDER : CABLE (3*25+16)+16mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 80 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 620 1P 16A 32A 1P 1000 3x4 P1 POWER SOCKET 2
3 LIGHTING L2 3x3 145 1P 16A 32A 1P 1000 3x4 P2 POWER SOCKET 4
5 LIGHTING L3 3x3 765 1P 16A 32A 1P 1000 3x4 P3 POWER SOCKET 6
7 LIGHTING L4 3x3 468 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 8
9 LIGHTING L5 3x3 878 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 10
11 LIGHTING L6 3x3 810 1P 16A 20A 1P 3356 3x6 A.C1 A/C UNIT 12
13 LIGHTING L7 3x3 463 1P 16A 20A 1P 1119 3x6 A.C2 A/C UNIT 14
15 LIGHTING L8 3x3 810 1P 16A 20A 1P 1119 3x6 A.C3 A/C UNIT 16
17 SOCKET S1 3x4 1350 1P 20A 20A 1P 2797 3x6 A.C4 A/C UNIT 18
19 SOCKET S2 3x5 1250 1P 20A 20A 1P 2237 3x6 A.C5 A/C UNIT 20
21 SOCKET S3 3x6 1700 1P 20A 32A 1P 2237 3x6 A.C6 A/C UNIT 22
23 SOCKET S4 3x7 1000 1P 20A 32A 1P 1500 3x6 W.H1 WATER HEATER 24
25 SOCKET S5 3x8 650 1P 20A 32A 1P 1500 3x6 W.H2 WATER HEATER 26
27 SOCKET S6 3x9 650 1P 20A 32A 1P 1500 3x6 W.H3 WATER HEATER 28
29 SOCKET S7 3x10 700 1P 20A 32A 1P 1500 3x6 W.H4 WATER HEATER 30
31 SOCKET S8 3x4 1150 1P 20A 32A 1P SPARE 32
33 SPARE _ 1P 16A 26A 1P SPARE 34
35 SPACE _ 1P 20A 1P SPARE 36
4601 4183 4625 R Y B 6856 6856 10153
MAIN C.B 4601 4183 4625
100 A 11457 11039 14778
MCCB TOTAL 37274
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 57.69
ELR : EARTH LEAKAGE 30 mA 52.08 50.18 67.17 8.96 9.62 12.69
MAX. FULL LOAD AMP DEMAND AMP/PH
67.17 AMP 40.72 43.72 57.69
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 4959 8450 5000 12865 0 6000 0 37274
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-F
ACTUAL LOAD 4463.1 7605 4500 10935.25 0 4800 0 32303.35 PANEL
