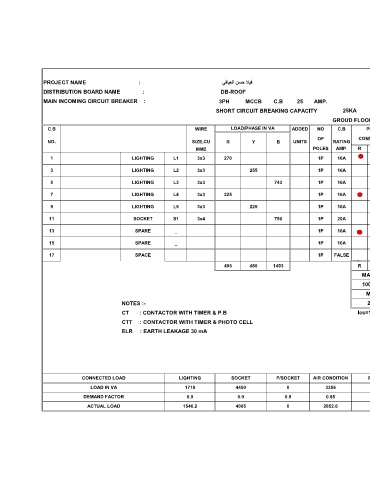

PROJECT NAME : يفايعلا نسح لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-ROOF INCOMMING FEEDER : CABLE (3*10+10)+10mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 25 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 270 1P 16A 20A 1P 600 3x4 S2 SOCKET 2
3 LIGHTING L2 3x3 255 1P 16A 20A 1P 750 3x4 S3 SOCKET 4
5 LIGHTING L3 3x3 743 1P 16A 20A 1P 1350 3x4 S4 SOCKET 6
7 LIGHTING L4 3x3 225 1P 16A 20A 1P 1000 3x4 S5 SOCKET 8
9 LIGHTING L5 3x3 225 1P 16A 20A 1P 3356 3x4 A.C1 A/C UNIT 10
11 SOCKET S1 3x4 750 1P 20A 20A 1P 1500 3x6 W.H1 WATER HEATER 12
13 SPARE _ 1P 16A 20A 1P _ SPARE 14
15 SPARE _ 1P 16A 20A 1P _ SPARE 16
17 SPACE 1P FALSE 20A 1P SPACE 18
495 480 1493 R Y B 1600 4106 2850 SPACE
MAIN C.B 495 480 1493
100 A 2095 4586 4343
MCCB TOTAL 11024
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 18.00
ELR : EARTH LEAKAGE 30 mA 9.52 20.85 19.74 1.89 3.96 3.76
MAX. FULL LOAD AMP DEMAND AMP/PH
20.85 AMP 8.57 18.00 17.09

CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 1718 4450 0 3356 0 1500 0 11024
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-R
ACTUAL LOAD 1546.2 4005 0 2852.6 0 1200 0 9603.8 PANEL
