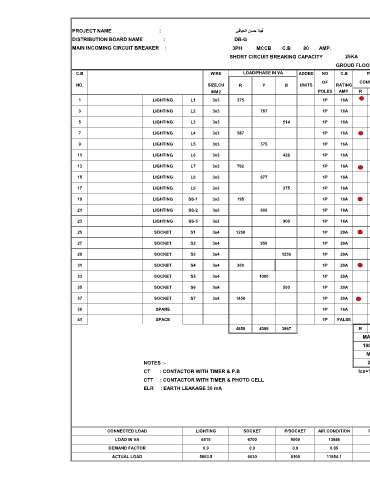

PROJECT NAME : يفايعلا نسح لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-G INCOMMING FEEDER : CABLE (3*25+16)+16mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 80 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 375 1P 16A 32A 1P 1000 3x4 P1 POWER SOCKET 2
3 LIGHTING L2 3x3 787 1P 16A 32A 1P 1000 3x4 P2 POWER SOCKET 4
5 LIGHTING L3 3x3 514 1P 16A 32A 1P 1000 3x4 P3 POWER SOCKET 6
7 LIGHTING L4 3x3 587 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 8
9 LIGHTING L5 3x3 375 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 10
11 LIGHTING L6 3x3 428 1P 16A 20A 1P 1000 3x4 P6 POWER SOCKET 12
13 LIGHTING L7 3x3 702 1P 16A 20A 1P 1000 3x4 P7 POWER SOCKET 14
15 LIGHTING L8 3x3 677 1P 16A 20A 1P 1000 3x4 P8 POWER SOCKET 16
17 LIGHTING L9 3x3 375 1P 16A 20A 1P 1000 3x4 P9 POWER SOCKET 18
19 LIGHTING SS-1 3x3 195 1P 16A 20A 1P 3878 3x6 A.C1 A/C UNIT 20
21 LIGHTING SS-2 3x3 600 1P 16A 20A 1P 2237 3x6 A.C2 A/C UNIT 22
23 LIGHTING SS-3 3x3 900 1P 16A 20A 1P 1119 3x6 A.C3 A/C UNIT 24
25 SOCKET S1 3x4 1250 1P 20A 20A 1P 2237 3x6 A.C4 A/C UNIT 26
27 SOCKET S2 3x4 950 1P 20A 32A 1P 3356 3x6 A.C5 A/C UNIT 28
29 SOCKET S3 3x4 1250 1P 20A 20A 1P 1119 3x6 A.C6 A/C UNIT 30
31 SOCKET S4 3x4 300 1P 20A 32A 1P 1500 3x6 W.H1 WATER HEATER 32
33 SOCKET S5 3x4 1000 1P 20A 32A 1P 1500 3x6 W.H2 WATER HEATER 34
35 SOCKET S6 3x4 500 1P 20A 32A 1P 1500 3x6 W.H3 WATER HEATER 36
37 SOCKET S7 3x4 1450 1P 20A 32A 1P SPARE 38
39 SPARE 1P 16A 32A 1P SPARE 40
41 SPACE 1P FALSE 32A 1P SPACE 42
4859 4389 3967 R Y B 10615 10093 6738
MAIN C.B 4859 4389 3967
100 A 15474 14482 10705
MCCB TOTAL 40661
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 48.62
ELR : EARTH LEAKAGE 30 mA 70.34 65.83 48.66 10.70 10.50 7.72
MAX. FULL LOAD AMP DEMAND AMP/PH
70.34 AMP 48.62 47.75 35.10
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 6515 6700 9000 13946 0 4500 0 40661
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.90 DB-G
ACTUAL LOAD 5863.5 6030 8100 11854.1 0 3600 0 35447.6 PANEL
