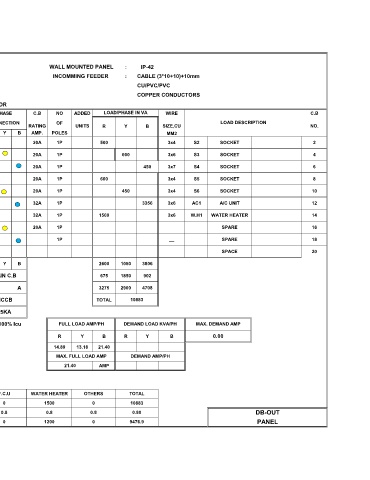

PROJECT NAME : يفايعلا نسح لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-OUT INCOMMING FEEDER : CABLE (3*10+10)+10mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 25 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 25KA COPPER CONDUCTORS
GROUND FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 180 1P 16A 20A 1P 500 3x4 S2 SOCKET 2
3 LIGHTING L2 3x3 375 1P 16A 20A 1P 600 3x6 S3 SOCKET 4
5 LIGHTING L3 3x3 587 1P 16A 20A 1P 450 3x7 S4 SOCKET 6
7 LIGHTING L4 3x3 270 1P 16A 20A 1P 600 3x4 S5 SOCKET 8
9 LIGHTING L5 3x3 225 1P 16A 20A 1P 450 3x4 S6 SOCKET 10
11 LIGHTING L6 3x3 315 1P 16A 32A 1P 3356 3x6 AC1 A/C UNIT 12
13 LIGHTING L7 3x3 225 1P 16A 32A 1P 1500 3x6 W.H1 WATER HEATER 14
15 SOCKET S1 3x4 1250 1P 20A 20A 1P SPARE 16
17 SPARE 1P 16A 1P __ SPARE 18
19 SPACE SPACE 20
675 1850 902 R Y B 2600 1050 3806
MAIN C.B 675 1850 902
30 A 3275 2900 4708
MCCB TOTAL 10883
NOTES :- 25KA
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B 0.00
ELR : EARTH LEAKAGE 30 mA 14.89 13.18 21.40
MAX. FULL LOAD AMP DEMAND AMP/PH
21.40 AMP
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 2177 3850 0 3356 0 1500 0 10883
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.8 0.80 DB-OUT
ACTUAL LOAD 1959.3 3465 0 2852.6 0 1200 0 9476.9 PANEL
