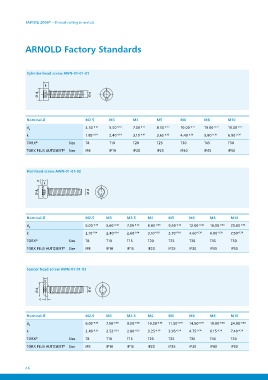

TAPTITE 2000® – Thread-rolling in metals
ARNOLD Factory Standards
Cylinder-head screw AWN-01-01-01
Nominal Ø M2.5 M3 M4 M5 M6 M8 M10
4.50-0.18 5.50-0.18 7.00-0.22 8.50-0.22 10.00-0.22 13.00-0.27 16.00-0.27
dk 1.85-0.14 2.40-0.14 3.10-0.18 3.65-0.18 4.40-0.30 5.80-0.30 6.90-0.36
k T8 T10 T20 T25 T30 T45 T50
IP8 IP10 IP20 IP25 IP30 IP45 IP50
TORX® Size
TORX PLUS AUTOSERT® Size
Flat-head screw AWN-01-01-02
Nominal Ø M2.5 M3 M3.5 M4 M5 M6 M8 M10
5.00-0.30 5.60-0.30 7.00-0.36 8.00-0.36 9.50-0.36 12.00-0.43 16.00-0.43 20.00-0.52
dk 2.10-0.14 2.40-0.14 2.60-0.14 3.10-0.18 3.70-0.18 4.60-0.30 6.00-0.30 7.50-0.36
k T8 T10 T15 T20 T25 T30 T45 T50
IP8 IP10 IP15 IP20 IP25 IP30 IP45 IP50
TORX® Size
TORX PLUS AUTOSERT® Size
Saucer-head screw AWN-01-01-03
Nominal Ø M2.5 M3 M3.5 M4 M5 M6 M8 M10
6.00-0.30 7.50-0.58 9.00-0.58 10.00-0.58 11.50-0.70 14.50-0.70 19.00-0.84 24.00-0.84
dk 2.40-0.25 2.52-0.24 2.80-0.25 3.25-0.30 3.95-0.30 4.75-0.30 6.15-0.30 7.40-0.30
k T8 T10 T15 T20 T25 T30 T40 T50
IP8 IP10 IP15 IP20 IP25 IP30 IP40 IP50
TORX® Size
TORX PLUS AUTOSERT® Size
