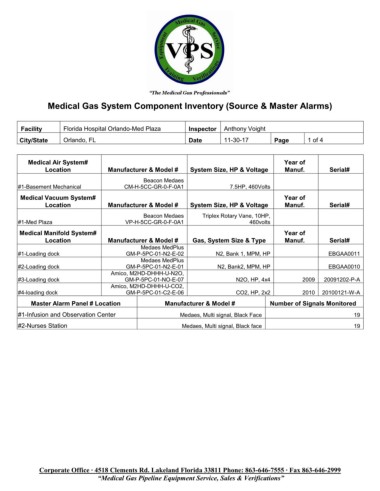

Medical Gas System Component Inventory (Source & Master Alarms)

Facility Florida Hospital Orlando-Med Plaza Inspector Anthony Voight

City/State Orlando, FL Date 11-30-17 Page 1 of 4

Medical Air System# Year of
Location Manufacturer & Model # System Size, HP & Voltage Manuf. Serial#
Beacon Medaes
#1-Basement Mechanical CM-H-5CC-GR-0-F-0A1 7.5HP, 460Volts
Medical Vacuum System# Year of
Location Manufacturer & Model # System Size, HP & Voltage Manuf. Serial#
Beacon Medaes Triplex Rotary Vane, 10HP,
#1-Med Plaza VP-H-5CC-GR-0-F-0A1 460volts
Medical Manifold System# Year of
Location Manufacturer & Model # Gas, System Size & Type Manuf. Serial#
Medaes MedPlus
#1-Loading dock GM-P-5PC-01-N2-E-02 N2, Bank 1, MPM, HP EBGAA0011
Medaes MedPlus
#2-Loading dock GM-P-5PC-01-N2-E-01 N2, Bank2, MPM, HP EBGAA0010
Amico, M2HD-DHHH-U-N2O,
#3-Loading dock GM-P-5PC-01-NO-E-07 N2O, HP, 4x4 2009 20091202-P-A
Amico, M2HD-DHHH-U-CO2,
#4-loading dock GM-P-5PC-01-C2-E-06 CO2, HP, 2x2 2010 20100121-W-A
Master Alarm Panel # Location Manufacturer & Model # Number of Signals Monitored

#1-Infusion and Observation Center Medaes, Multi signal, Black Face 19
#2-Nurses Station Medaes, Multi signal, Black face 19
