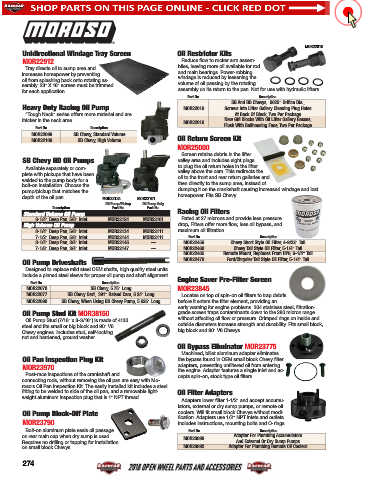

Page 275 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

MOR22010
Unidirectional Windage Tray Screen Oil Restrictor Kits
MOR22912 Reduce flow to rocker arm assem-
Tray directs oil to sump area and blies, leaving more oil available for rod
increases horsepower by preventing and main bearings. Power-robbing
oil from splashing back onto rotating as- windage is reduced by lessening the
sem bly. 23" X 16" screen must be trimmed volume of oil passing by the rotating
for each application. assembly on its return to the pan. Not for use with hydraulic lifters.
Part No. Description
SB And BB Chevys, .0625" Orifice Dia.,
Heavy Duty Racing Oil Pump MOR22010 Screws Into Lifter Gallery Cleaning Plug Holes
“Tough Neck" series offers more material and are At Back Of Block, Two Per Package
thicker in the neck area. MOR22016 New GM Blocks With Oil Lifter Gallery Bosses,
Flush With Bellhousing Face, Two Per Package
Part No. Description
MOR22099 SB Chevy, Standard Volume
MOR22109 SB Chevy, High Volume Oil Return Screen Kit
MOR25000
Screen retains debris in the lifter
SB Chevy HD Oil Pumps valley area and includes eight plugs
Available separately or com- to plug the oil return holes in the lifter
plete with pickups that have been valley above the cam . This re di rects the
welded to the pump body for a oil to the front and rear return gal ler ies and
bolt-on installation. Choose the then directly to the sump area, in stead of
pump/pickup that matches the dump ing it on the crank shaft causing in creased wind age and lost
depth of the oil pan. horsepower. Fits SB Chevy.
MOR22124 MOR22101
Oil Pump/Pickup Oil Pump Only
Description Part No. Part No.
Standard Volume Oil Pump Racing Oil Filters
8-1/4" Deep Pan, 5/8" Inlet MOR22124 MOR22101 Rated at 27 microns and provide less pressure
High Volume Oil Pump drop, Filters offer more flow, less oil bypass, and
8-1/4" Deep Pan, 5/8" Inlet MOR22134 MOR22111 maximum oil filtration.
7-1/2" Deep Pan, 5/8" Inlet MOR22144 MOR22111 Part No. Description
8-1/4" Deep Pan, 3/4" Inlet MOR22146 — MOR22459 Chevy Short Style Oil Filter, 4-9/32" Tall
7-1/8" Deep Pan, 3/4" Inlet MOR22147 — MOR22460 Chevy Tall Style Oil Filter, 5-1/4" Tall
MOR22465 Remote Mount, Replaces Fram HP6, 6-1/4" Tall
Oil Pump Driveshafts MOR22470 Ford/Chrysler Tall Style Oil Filter, 5-1/4" Tall
Designed to replace mild steel OEM shafts, high quality steel units
include a pinned steel sleeve for proper oil pump and shaft alignment.
Engine Saver Pre-Filter Screen
Part No. Description
MOR22070 SB Chevy, 5.75" Long MOR23845
MOR22077 SB Chevy Dart, .391" Raised Cam, 6.24" Long Locates on top of spin-on oil filters to trap debris
MOR22090 SB Chevy, When Using BB Chevy Pump, 5.625" Long before it enters the filter element, providing an
early warning for engine prob lems. 304 stain less steel, filtration-
Oil Pump Stud Kit MOR38150 grade screen traps con tam i nants down to the 280 micron range
Oil Pump Stud (7/16" x 3-3/16") is made of 4130 without affecting oil flow or pres sure. Crimped rings on inside and
steel and fits small or big block and 90° V6 outside diameters in crease strength and durability. Fits small block,
Chevy en gines. Includes stud, self-locking big block and 90° V6 Chevys.
nut and hard ened, ground washer.
Oil Bypass Eliminator MOR23775
Machined, billet aluminum adapter eliminates
Oil Pan Inspection Plug Kit the bypass found in OEM small block Chevy filter
MOR23970 adapters, preventing unfiltered oil from entering
the engine. Adapter features a single inlet and ac-
Post-race in spec tions of the crankshaft and cepts spin-on, stock type oil filters.
connecting rods, with out re mov ing the oil pan are easy with Mo-
roso’s Oil Pan Inspection Kit. The easily installed kit in cludes a steel
fitting to be weld ed to side of the oil pan, and a re mov able light- Oil Filter Adapters
weight alu mi num in spec tion plug that is 1" NPT thread. Adapters lower filter 1-1/2" and accept accumu-
lators, external or dry sump pumps, or remote oil
Oil Pump Block-Off Plate coolers. Will fit small block Chevys without modi-
fication. Adapters use 1/2" NPT inlets and outlets.
MOR23790 Includes in struc tions, mounting bolts and O-rings.
Bolt-on aluminum plate seals oil passage Part No. Description
on rear main cap when dry sump is used. Adapter For Plumbing Accumulators
Requires no drilling or tapping for in stal la tion MOR23690 And External Or Dry Sump Pumps
on small block Chevys. MOR23692 Adapter For Plumbing Remote Oil Coolers

274
