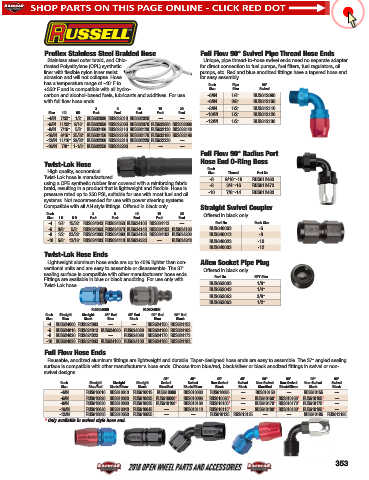

Page 354 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Proflex Stainless Steel Braided Hose Full Flow 90° Swivel Pipe Thread Hose Ends
Stainless steel outer braid, and Chlo- Unique, pipe thread-to-hose swivel ends need no separate adapter
rinated Polyethylene (CPL) synthetic for direct connection to fuel pumps, fuel filters, fuel regulators, oil
liner with flexible nylon inner resist pumps, etc. Red and blue anodized fittings have a tapered hose end
abrasion and will not collapse. Hose for easy assembly.
has a temperature range of -40°F to Dash Pipe 90°
+350°F and is compatible with all hydro- Size Size Swivel
carbon and alcohol-based fuels, lubricants and additives. For use -6AN 1/4" RUS612090
with full flow hose ends. -6AN 3/8" RUS612100
3 6 10 15 20 -8AN 1/2" RUS612110
Size I.D. OD. Feet Feet Feet Feet Feet -10AN 1/2" RUS612120
-4AN 7/32" 1/2" RUS632000 RUS632010 RUS632020 — —
-6AN 11/32" 9/16" RUS632050 RUS632060 RUS632070 RUS632080 RUS632090 -12AN 1/2" RUS612130
-8AN 7/16" 5/8" RUS632100 RUS632110 RUS632120 RUS632130 RUS632140
-10AN 9/16" 25/32" RUS632150 RUS632160 RUS632170 RUS632180 RUS632190
-12AN 11/16" 29/32" RUS632200 RUS632210 RUS632220 RUS632230 —
-16AN 7/8" 1-1/8" RUS632250 RUS632260 — — —
Full Flow 90° Radius Port
Hose End O-Ring Boss
Twist-Lok Hose
Dash
High quality, economical
Size Thread Part No.
Twist-Lok hose is manufactured -6 9/16”-18 RUS612463
using a CPE synthetic rubber liner covered with a reinforcing fabric -8 3/4”-16 RUS612473
braid, resulting in a product that is lightweight and flexible. Hose is
pressure rated up to 250 PSI, suitable for use with most fuel and oil -10 7/8”-14 RUS612433
systems. Not recommended for use with power steering systems.
Compatible with all AN style fittings. Offered in black only. Straight Swivel Coupler
Dash 3 6 10 15 25 Offered in black only.
Size I.D. O.D. Feet Feet Feet Feet Feet
-4 1/4" 15/32" RUS634343 RUS634353 RUS634103 RUS634113 — Part No. Dash Size
-6 3/8" 5/8" RUS634363 RUS634373 RUS634143 RUS634153 RUS634163 RUS640003 -6
-8 1/2" 23/32" RUS634383 RUS634393 RUS634183 RUS634193 RUS634203 RUS640013 -8
-10 5/8" 13/16" RUS634403 RUS634413 RUS634223 — RUS634243 RUS640023 -10
RUS640033 -12
Twist-Lok Hose Ends
Lightweight aluminum hose ends are up to 40% lighter than con- Allen Socket Pipe Plug
ventional units and are easy to assemble or disassemble. The 37° Offered in black only.
sealing surface is compatible with other manufacturers' hose ends.
Fittings are available in blue or black anodizing. For use only with Part No. NPT Size
Twist-Lok hose. RUS662033 1/8"
RUS662043 1/4"
RUS662053 3/8"
RUS662063 1/2"
RUS624000 RUS624003
Dash Straight Straight 45° End 45° End 90° End 90° End
Size Blue Black Blue Black Blue Black
-4 RUS624000 RUS624003 — — RUS624150 RUS624153
-6 RUS624010 RUS624013 RUS624080 RUS624083 RUS624160 RUS624163
-8 RUS624020 RUS624023 — RUS624093 RUS624170 RUS624173
-10 RUS624030 RUS624033 RUS624100 RUS624103 RUS624180 RUS624183
Full Flow Hose Ends
Reusable, anodized aluminum fittings are lightweight and durable. Taper-designed hose ends are easy to assemble. The 37° angled sealing
surface is compatible with other manufacturer’s hose ends. Choose from blue/red, black/silver or black anodized fittings in swivel or non-
swivel designs.
45° 45° 45° 45° 90° 90° 90° 90°
Dash Straight Straight Straight Swivel Swivel Non-Swivel Swivel Non-Swivel Non-Swivel Non-Swivel Swivel
Size Blue/Red Black/Silver Black Blue/Red Black/Silver Black Black Blue/Red Black/Silver Black Black
-4AN RUS610010 RUS610013 RUS610015 RUS610080 RUS610083 RUS610085 — RUS610150 — RUS610155 —
-6AN RUS610020 RUS610023 RUS610025 RUS610090* RUS610093 RUS610095* — RUS610160* RUS610163* RUS610165* —
-8AN RUS610030 RUS610033 RUS610035 RUS610100* RUS610103 RUS610105* — RUS610170* RUS610173* RUS610175* —
-10AN RUS610040 RUS610043 RUS610045 — RUS610113 RUS610115* — RUS610180* RUS610183* RUS610185* —
-12AN RUS610050 RUS610053 RUS610055 — — RUS610125 RUS613125 — — RUS610195 RUS613195
* Only available in swivel style hose end.
