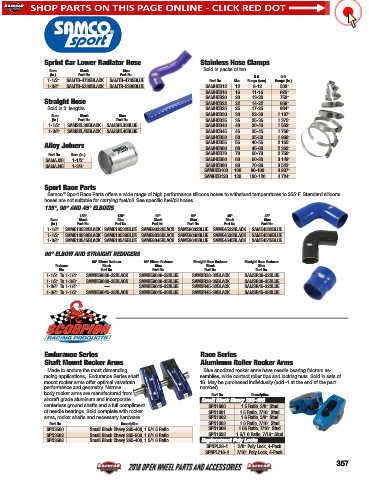

Page 358 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Sprint Car Lower Radiator Hose Stainless Hose Clamps
Bore Black Blue Sold in packs of ten.
(In.) Part No. Part No.
O.D. O.D.
1-1/2" SAMTB-4735BLACK SAMTB-4735BLUE Part No. Size Range (mm) Range (In.)
1-3/4" SAMTB-5330BLACK SAMTB-5330BLUE SAMHCB12 12 8-12 .500"
SAMHCB16 16 11-16 .625"
SAMHCB20 20 13-20 .750"
Straight Hose SAMHCB22 22 14-22 .866"
Sold in 3' lengths. SAMHCB25 25 17-25 .984"
Bore Black Blue SAMHCB30 30 22-30 1.187"
(In.) Part No. Part No. SAMHCB35 35 25-35 1.375"
1-1/2" SAMSHL38BLACK SAMSHL38BLUE SAMHCB40 40 30-40 1.562"
1-3/4" SAMSHL45BLACK SAMSHL45BLUE SAMHCB45 45 35-45 1.750"
SAMHCB50 50 35-50 1.968"
SAMHCB55 55 40-55 2.165"
Alloy Joiners SAMHCB60 60 45-60 2.362"
Part No. Bore (In.) SAMHCB70 70 50-70 2.750"
SAMAJ38 1-1/2" SAMHCB80 80 60-80 3.149"
SAMAJ45 1-3/4" SAMHCB90 90 70-90 3.543"
SAMHCB100 100 80-100 3.937"
SAMHCB120 120 100-120 4.724"
Sport Race Parts
®
Samco Sport Race Parts offers a wide range of high performance silicone hoses to withstand temperatures to 355°F. Standard silicone
hoses are not suitable for carrying fuel/oil. See specific fuel/oil hoses.
135°, 90° AND 45° ELBOWS
135° 135° 90° 90° 45° 45°
Bore Black Blue Black Blue Black Blue
(In.) Part No. Part No. Part No. Part No. Part No. Part No.
1-1/4" SAME13532BLACK SAME13532BLUE SAME9032BLACK SAME9032BLUE SAME4532BLACK SAME4532BLUE
1-1/2" SAME13538BLACK SAME13538BLUE SAME9038BLACK SAME9038BLUE SAME4538BLACK SAME4538BLUE
1-3/4" SAME13545BLACK SAME13545BLUE SAME9045BLACK SAME9045BLUE SAME4545BLACK SAME4545BLUE
90° ELBOW AND STRAIGHT REDUCERS
90° Elbow Reducer 90° Elbow Reducer Straight Hose Reducer Straight Hose Reducer
Reducer Black Blue Black Blue
Dia. Part No. Part No. Part No. Part No.
1-1/2" To 1-1/4" SAMRE9038-32BLACK SAMRE9038-32BLUE SAMSR38-32BLACK SAMSR38-32BLUE
1-1/2" To 1-3/8" SAMRE9038-35BLACK SAMRE9038-35BLUE SAMSR38-35BLACK SAMSR38-35BLUE
1-3/4" To 1-1/4" — SAMRE9045-32BLUE SAMSR45-32BLACK SAMSR45-32BLUE
1-3/4" To 1-1/2" SAMRE9045-38BLACK SAMRE9045-38BLUE SAMSR45-38BLACK SAMSR45-38BLUE

Endurance Series Race Series
Shaft Mount Rocker Arms Aluminum Roller Rocker Arms
Made to endure the most demanding Blue anodized rocker arms have needle bearing fulcrum as-
racing applications, Endurance Series shaft semblies, wide contact roller tips and locking nuts. Sold in sets of
mount rocker arms offer optimal valvetrain 16. May be purchased individually (add -1 at the end of the part
performance and geometry. Narrow number).
body rocker arms are manufactured from Part No. Description
aircraft grade aluminum and incorporate Small Block Chevy 265-400
centerless ground shafts and a full compliment SPN1000 1.5 Ratio, 3/8" Stud
of needle bearings. Sold complete with rocker SPN1001 1.5 Ratio, 7/16" Stud
arms, rocker shafts and necessary hardware. SPN1002 1.6 Ratio, 3/8" Stud
Part No. Description SPN1003 1.6 Ratio, 7/16" Stud
SPN3500 Small Block Chevy 265-400, 1.5/1.5 Ratio SPN1009 1.65 Ratio, 7/16" Stud
SPN3502 Small Block Chevy 265-500, 1.6/1.6 Ratio SPN1028 1.5/1.6 Ratio, 7/16" Stud
SPN3508 Small Block Chevy 265-400, 1.5/1.6 Ratio Replacement Poly Locks
SPNPL38-4 3/8" Poly Lock, 4-Pack
SPNPL716-4 7/16" Poly Lock, 4-Pack
357
