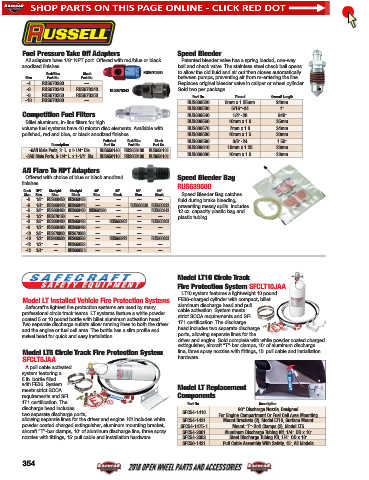

Page 355 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Fuel Pressure Take Off Adapters Speed Bleeder
All adapters have 1/8" NPT port. Offered with red/blue or black Patented bleeder valve has a spring loaded, one-way
anodized finishes. ball and check valve. The stainless steel check ball opens
Red/Blue Black RUS670290 to allow the old fluid and air out then closes automatically
Size Part No. Part No. between pumps, preventing air from re-entering the line.
-4 RUS670290 — Replaces original bleeder valve in caliper or wheel cylinder.
-6 RUS670340 RUS670343 RUS670343 Sold two per package.
-8 RUS670350 RUS670353 Part No. Thread Overall Length
-10 RUS670360 —
RUS639520 8mm x 1.25mm 24mm
RUS639530 5/16"-24 1"
Competition Fuel Filters RUS639540 1/4"-28 .940"
Billet aluminum, in-line filters for high RUS639560 10mm x 1.0 35mm
volume fuel systems have 40 micron disc elements. Available with RUS639570 7mm x 1.0 34mm
polished, red and blue, or black anodized finishes. RUS639580 10mm x 1.5 30mm
Polished Red/Blue Black RUS639590 3/8"-24 1.50"
Description Part No. Part No. Part No.
RUS639610 10mm x 1.25 33mm
-6AN Male Ports, 3" L. x 1-1/4" Dia. RUS650140 RUS650130 RUS650133
-8AN Male Ports, 3-1/4" L. x 1-1/4" Dia. RUS650110 RUS650100 RUS650103 RUS639630 10mm x 1.0 33mm
AN Flare To NPT Adapters
Offered with choice of blue or black anodized Speed Bleeder Bag
finishes.
RUS639500
Dash NPT Straight Straight 45° 45° 90° 90°
Size Size Blue Black Blue Black Blue Black Speed Bleeder Bag catches
-6 1/8" RUS660450 RUS660453 — — — — fluid during brake bleeding,
-6 1/4" RUS660440 RUS660443 — — RUS660820 RUS660823 preventing messy spills. Includes
-6 3/8" RUS660460 RUS660463 RUS662390 — — RUS660843 12 oz. capacity plastic bag and
-6 1/2" RUS670150 — — — — — plastic tubing.
-8 3/8" RUS660480 RUS660483 — RUS660963 — RUS660863
-8 1/2" RUS660490 RUS660493 — — — —
-10 3/8" RUS670030 RUS670033 — — — —
-10 1/2" RUS660500 RUS660503 — RUS660973 — RUS660883
-12 1/2" — RUS660523 — — — —
-12 3/4" — RUS660513 — — — —

Model LT10 Circle Track
Fire Protection System SFCLT10JAA
LT10 system features a lightweight 10 pound
Model LT Installed Vehicle Fire Protection Systems FE36-charged cylinder with compact, billet
aluminum discharge head and pull
Safecraft’s lightest fire protection systems are used by many
professional circle track teams. LT systems feature a white powder cable activation. System meets
strict SCCA requirements and SFI
coated 5 or 10 pound bottle with billet aluminum activation head.
Two separate discharge outlets allow running lines to both the driver 17.1 certification. The discharge
head includes two separate discharge
and the engine or fuel cell area. The bottle has a slim profile and
swivel head for quick and easy installation. ports, allowing separate lines for the
driver and engine. Sold complete with white powder coated charged
extinguisher, aircraft “T”-bar clamps, 10' of aluminum discharge
Model LT5 Circle Track Fire Protection System line, three spray nozzles with fittings, 15' pull cable and installation
SFCLT5JAA hardware.
A pull cable activated
system featuring a
5 lb. bottle filled
with FE36. System Model LT Replacement
meets strict SCCA
requirements and SFI Components
17.1 certification. The Part No. Description
discharge head includes 90° Discharge Nozzle, Designed
two separate discharge ports, SFC54-1416 For Engine Compartment Or Fuel Cell Area Mounting
allowing separate lines for the driver and engine. Kit includes white SFC54-1431 Mount Brackets (2), Model LT10, Surface Mount
powder coated charged extinguisher, aluminum mounting bracket, SFC54-1475-1 Mount “T”-Bolt Clamps (2), Model LT5
aircraft “T”-bar clamps, 10' of aluminum discharge line, three spray SFC54-2001 Aluminum Discharge Tubing Kit, 1/4" OD x 10'
nozzles with fittings, 15' pull cable and installation hardware. SFC54-2002 Steel Discharge Tubing Kit, 1/4" OD x 10'
SFC56-1421 Pull Cable Assembly With Safety, 15', All Models

354
