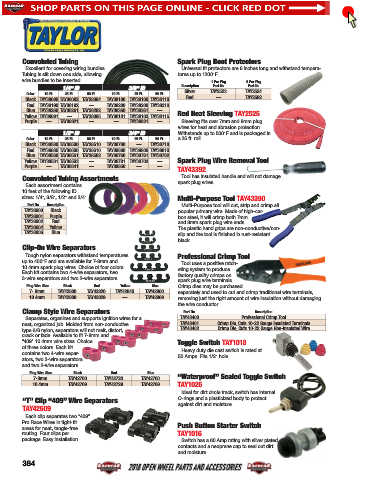

Page 385 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Convoluted Tubing Spark Plug Boot Protectors
Excellent for covering wiring bundles. Universal fit protectors are 6 inches long and withstand tempera-
Tubing is slit down one side, allowing tures up to 1200°F.
wire bundles to be inserted. 1 Per Pkg. 8 Per Pkg.
1/4" ID 3/8" ID Description Part No. Part No.
Silver TAY2523 TAY2524
Color 10 Ft. 25 Ft. 50 Ft. 10 Ft. 25 Ft. 50 Ft.
Black TAY38090 TAY38092 TAY38094 TAY38180 TAY38100 TAY38110 Red — TAY2562
Red TAY38190 TAY38192 — TAY38280 TAY38200 TAY38210
Blue TAY38260 TAY38261 TAY38262 TAY38360 TAY38361 —
Yellow TAY38091 — TAY38095 TAY38181 TAY38103 TAY38115 Red Heat Sleeving TAY2525
Purple — TAY38821 — — TAY38831 — Sleeving fits over 7mm and 8mm plug
wires for heat and abrasion protection.
1/2" ID 3/4" ID Withstands up to 500°F and is packaged in
Color 10 Ft. 25 Ft. 50 Ft. 10 Ft. 25 Ft. 50 Ft. a 25 ft. roll.
Black TAY38580 TAY38500 TAY38510 TAY38780 — TAY38710
Red TAY38680 TAY38600 TAY38610 TAY38880 TAY38800 TAY38810
Blue TAY38560 TAY38561 TAY38562 TAY38760 TAY38761 TAY38762
Yellow TAY38581 TAY38503 — TAY38781 TAY38703 — Spark Plug Wire Removal Tool
Purple — TAY38841 — TAY38850 — —
TAY43392
Convoluted Tubing Assortments Tool has insulated handle and will not damage
Each assortment contains spark plug wires.
10 feet of the following ID
sizes: 1/4", 3/8", 1/2" and 3/4". Multi-Purpose Tool TAY43390
Part No. Description Multi-Purpose tool will cut, strip and crimp all
TAY38000 Black popular primary wire. Made of high-car-
TAY38001 Purple bon steel, it will crimp both 7mm
TAY38002 Red and 8mm spark plug wire ends.
TAY38004 Yellow The plastic hand grips are non-conductive/non-
TAY38006 Blue slip and the tool is finished in rust-resistant
black.
Clip-On Wire Separators
Tough nylon separators withstand temperatures Professional Crimp Tool
up to 400°F and are available for 7-8mm and Tool uses a positive ratch-
10.4mm spark plug wires. Choice of four colors. eting system to produce
Each kit contains two 4-wire separators, two factory quality crimps on
3-wire separators and two 2-wire separators.
spark plug wire terminals.
Plug Wire Size Black Red Yellow Blue Crimp dies may be purchased
7- 8mm TAY42800 TAY42820 TAY42840 TAY42860 separately and used to cut and crimp traditional wire terminals,
10.4mm TAY42809 TAY42829 — TAY42869 removing just the right amount of wire insulation without damaging
the wire conductor.
Clamp Style Wire Separators Part No. Description
Separates, organizes and supports ignition wires for a TAY43400 Professional Crimp Tool
neat, organized job. Molded from non-conductive TAY43401 Crimp Die, Cuts 10-22 Gauge Insulated Terminals
type 6/6 nylon, separators will not melt, distort, TAY43402 Crimp Die, Cuts 10-22 Gauge Non-Insulated Wire
crack or fade. Available to fit 7-8mm and
“409” 10.4mm wire sizes. Choice Toggle Switch TAY1018
of three colors. Each kit Heavy duty die cast switch is rated at
contains two 4-wire separ- 50 Amps. Fits 1/2" hole.
ators, two 3-wire separators
and two 2-wire separators.
Plug Wire Size Black Red Blue
7-8mm TAY42700 TAY42720 TAY42760 “Waterproof” Sealed Toggle Switch
10.4mm TAY42709 TAY42729 TAY42769 TAY1026
Ideal for dirt circle track, switch has internal
O-rings and a plasticized body to protect
“T” Clip “409” Wire Separators
against dirt and moisture.
TAY42609
Each clip separates two “409”
Pro Race Wires in tight-fit
areas for neat, tangle-free Push Button Starter Switch
rout ing. Four clips per TAY1016
package. Easy installation. Switch has a 60 Amp rating with silver plated
contacts and a neoprene cap to seal out dirt
and moisture.
384
