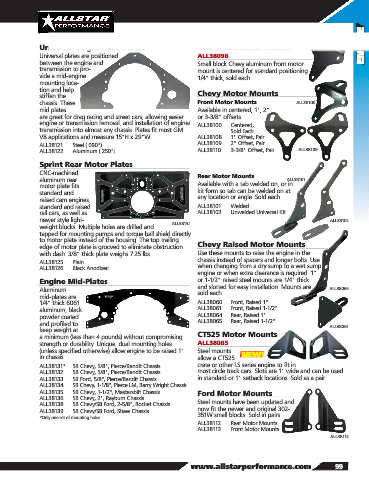

Page 101 - 2019 Allstar Performance Parts and Equipment Catalog

ENGINE

Universal Engine Mid-Plates Aluminum Motor Mount
Universal plates are positioned ALL38098
between the engine and Small block Chevy aluminum front motor
transmission to pro- mount is centered for standard positioning.
vide a mid-engine 1/4" thick, sold each.
mounting loca-
tion and help Chevy Motor Mounts
stiffen the
chassis. These Front Motor Mounts ALL38100
mid plates Available in centered, 1", 2"
are great for drag racing and street cars, allowing easier or 3-3/8" offsets.
engine or transmission removal, and installation of engine/ ALL38100 ..... Centered,
transmission into almost any chassis. Plates fit most GM Sold Each
V8 applications and measure 15"H x 29"W. ALL38108 ..... 1" Offset, Pair
ALL38121 ..... Steel (.090") ALL38109 ..... 2" Offset, Pair
ALL38122 ..... Aluminum (.250") ALL38110 .... 3-3/8" Offset, Pair ALL38109

Sprint Rear Motor Plates
CNC-machined Rear Motor Mounts
aluminum rear ALL38101
motor plate fits Available with a tab welded on, or in
standard and kit form so tab can be welded on at
raised cam engines, any location or angle. Sold each.
standard and raised ALL38101 ..... Welded
rail cars, as well as ALL38102 ..... Unwelded Universal Kit
newer style light- ALL38102
ALL38132
weight blocks. Multiple holes are drilled and
tapped for mounting pumps and torque ball shield directly
to motor plate instead of the housing. The top trailing
edge of motor plate is grooved to eliminate obstruction Chevy Raised Motor Mounts
with dash. 3/8" thick plate weighs 7.25 lbs. Use these mounts to raise the engine in the
ALL38125 ..... Plain chassis instead of spacers and longer bolts. Use
ALL38126 ..... Black Anodized when changing from a dry sump to a wet sump
engine or when extra clearance is required. 1"
Engine Mid-Plates or 1-1/2" raised steel mounts are 1/4" thick
and slotted for easy installation. Mounts are ALL38065
Aluminum sold each.
mid-plates are
1/4" thick 6061 ALL38060 .... Front, Raised 1"
aluminum, black ALL38061 ..... Front, Raised 1-1/2"
powder coated ALL38064 .... Rear, Raised 1"
and profiled to ALL38065 ..... Rear, Raised 1-1/2" ALL38061
keep weight at CT525 Motor Mounts
a minimum (less than 4 pounds) without compromising
strength or durability. Unique, dual mounting holes ALL38085
(unless specified otherwise) allow engine to be raised 1" Steel mounts NEW!
in chassis. allow a CT525
ALL38131* ... SB Chevy, 5/8", Pierce/Bandit Chassis crate or other LS series engine to fit in
ALL38132 ..... SB Chevy, 5/8", Pierce/Bandit Chassis most circle track cars. Slots are 1" wide and can be used
ALL38133 ..... SB Ford, 5/8", Pierce/Bandit Chassis in standard or 1" setback locations. Sold as a pair.
ALL38134 ..... SB Chevy, 1-1/8", Pierce LM, Barry Wright Chassis
ALL38135 ..... SB Chevy, 1-1/2", Mastersbilt Chassis Ford Motor Mounts
ALL38136 ..... SB Chevy, 2", Rayburn Chassis
ALL38138 ..... SB Chevy/SB Ford, 2-5/8", Rocket Chassis Steel mounts have been updated and
ALL38139 ..... SB Chevy/SB Ford, Shaw Chassis now fit the newer and original 302-
351W small blocks. Sold in pairs.
*Only one set of mounting holes
ALL38112 ..... Rear Motor Mounts
ALL38113 ..... Front Motor Mounts
ALL38113
