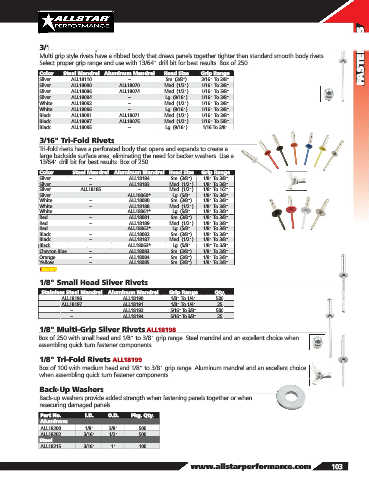

Page 105 - 2019 Allstar Performance Parts and Equipment Catalog

FASTENERS

3/16" Multi Grip Rivets
Multi grip style rivets have a ribbed body that draws panels together tighter than standard smooth body rivets.
Select proper grip range and use with 13/64" drill bit for best results. Box of 250.
Color Steel Mandrel Aluminum Mandrel Head Size Grip Range
Silver ALL18110 – Sm. (3/8") 3/16" To 3/8"
Silver ALL18090 ALL18070 Med. (1/2") 1/16" To 3/8"
Silver ALL18086 ALL18074 Med. (1/2") 1/16" To 5/8"
Silver ALL18094 – Lg. (9/16") 1/16" To 3/8"
White ALL18092 – Med. (1/2") 1/16" To 3/8"
White ALL18096 – Lg. (9/16") 1/16" To 3/8"
Black ALL18091 ALL18071 Med. (1/2") 1/16" To 3/8"
Black ALL18087 ALL18075 Med. (1/2") 1/16" To 5/8"
Black ALL18095 – Lg. (9/16") 1/16 To 3/8"
3/16" Tri-Fold Rivets
Tri-fold rivets have a perforated body that opens and expands to create a
large backside surface area, eliminating the need for backer washers. Use a
13/64" drill bit for best results. Box of 250.
Color Steel Mandrel Aluminum Mandrel Head Size Grip Range
Silver – ALL18184 Sm. (3/8") 1/8" To 3/8"
Silver – ALL18183 Med. (1/2") 1/8" To 3/8"
Silver ALL18185 – Med. (1/2") 1/8" To 1/2"
Silver ALL18060* Lg. (5/8" 1/8" To 3/8"
White – ALL18080 Sm. (3/8") 1/8" To 3/8"
White – ALL18188 Med. (1/2") 1/8" To 3/8"
White ALL18061* Lg. (5/8" 1/8" To 3/8"
Red – ALL18081 Sm. (3/8") 1/8" To 3/8"
Red – ALL18189 Med. (1/2") 1/8" To 3/8"
Red ALL18062* Lg. (5/8" 1/8" To 3/8"
Black – ALL18082 Sm. (3/8") 1/8" To 3/8"
Black – ALL18187 Med. (1/2") 1/8" To 3/8"
Black ALL18063* Lg. (5/8" 1/8" To 3/8"
Chevron Blue – ALL18083 Sm. (3/8") 1/8" To 3/8"
Orange – ALL18084 Sm. (3/8") 1/8" To 3/8"
Yellow – ALL18085 Sm. (3/8") 1/8" To 3/8"
*NEW!

1/8" Small Head Silver Rivets
Stainless Steel Mandrel Aluminum Mandrel Grip Range Qty.
ALL18196 ALL18190 1/8" To 1/4" 500
ALL18197 ALL18191 1/8" To 1/4" 25
– ALL18192 5/16" To 3/8" 500
– ALL18194 5/16" To 3/8" 25

1/8" Multi-Grip Silver Rivets ALL18198
Box of 250 with small head and 1/8" to 3/8" grip range. Steel mandrel and an excellent choice when
assembling quick turn fastener components.

1/8" Tri-Fold Rivets ALL18199
Box of 100 with medium head and 1/8" to 3/8" grip range. Aluminum mandrel and an excellent choice
when assembling quick turn fastener components.

Back-Up Washers
Back-up washers provide added strength when fastening panels together or when
resecuring damaged panels.
Part No. I.D. O.D. Pkg. Qty.
Aluminum
ALL18200 1/8" 3/8" 500
ALL18202 3/16" 1/2" 500
Steel
ALL18215 3/16" 1" 100
