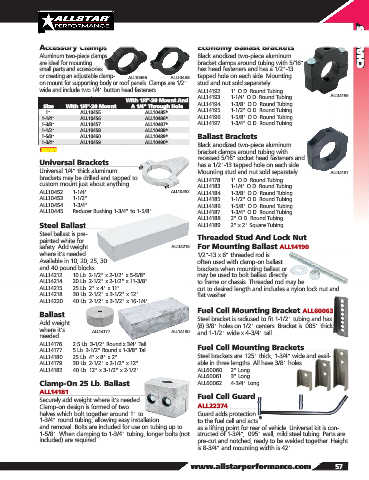

Page 59 - 2019 Allstar Performance Parts and Equipment Catalog

CHASSIS

Accessory Clamps Economy Ballast Brackets
Aluminum two-piece clamps Black anodized two-piece aluminum
are ideal for mounting bracket clamps around tubing with 5/16"
small parts and accessories hex head fasteners and has a 1/2"-13
or creating an adjustable clamp- ALL10456 ALL10488 tapped hole on each side. Mounting
on mount for supporting body or roof panels. Clamps are 1/2" stud and nut sold separately.
wide and include two 1/4" button head fasteners. ALL14192 ...... 1" O.D. Round Tubing
ALL14193 ...... 1-1/4" O.D. Round Tubing ALL14195
With 1/4"-20 Mount And
Size With 1/4"-20 Mount A 1/4" Through Hole ALL14194 ...... 1-3/8" O.D. Round Tubing
1" ALL10455 ALL10485* ALL14195 ...... 1-1/2" O.D. Round Tubing
1-1/4" ALL10456 ALL10486* ALL14196 ...... 1-5/8" O.D. Round Tubing
1-3/8" ALL10457 ALL10487* ALL14197 ...... 1-3/4" O.D. Round Tubing
1-1/2" ALL10458 ALL10488*
1-5/8" ALL10460 ALL10489* Ballast Brackets
1-3/4" ALL10459 ALL10490* Black anodized two-piece aluminum
*NEW! bracket clamps around tubing with
recessed 5/16" socket head fasteners and
Universal Brackets has a 1/2"-13 tapped hole on each side.
Universal 1/4" thick aluminum Mounting stud and nut sold separately. ALL14187
brackets may be drilled and tapped to ALL14178 ...... 1" O.D. Round Tubing
custom mount just about anything. ALL14183 ...... 1-1/4" O.D. Round Tubing
ALL10452 ..... 1-1/4" ALL10452 ALL14184...... 1-3/8" O.D. Round Tubing
ALL10453 ..... 1-1/2" ALL14185 ...... 1-1/2" O.D. Round Tubing
ALL10454 ..... 1-3/4" ALL14186 ...... 1-5/8" O.D. Round Tubing
ALL10445 ..... Reducer Bushing 1-3/4" to 1-5/8" ALL14187 ...... 1-3/4" O.D. Round Tubing
ALL14188 ...... 2" O.D. Round Tubing
Steel Ballast ALL14189 ...... 2" x 2" Square Tubing
Steel ballast is pre-
painted white for Threaded Stud And Lock Nut
safety. Add weight ALL14215 For Mounting Ballast ALL14190
where it’s needed. 1/2"-13 x 6" threaded rod is
Available in 10, 20, 25, 30 often used with clamp-on ballast
and 40 pound blocks. brackets when mounting ballast or
ALL14212 ...... 10 Lb. 2-1/2" x 2-1/2" x 5-5/8" may be used to bolt ballast directly
ALL14214 ...... 20 Lb. 2-1/2" x 2-1/2" x 11-3/8" to frame or chassis. Threaded rod may be
ALL14215 ...... 25 Lb. 2" x 4" x 11" cut to desired length and includes a nylon lock nut and
ALL14218 ...... 30 Lb. 2-1/2" x 3-1/2" x 12" flat washer.
ALL14220 ..... 40 Lb. 2-1/2" x 3-1/2" x 16-1/4"
Fuel Cell Mounting Bracket ALL60063
Ballast
Steel bracket is radiused to fit 1-1/2" tubing and has
Add weight (8) 3/8" holes on 1/2" centers. Bracket is .085" thick
where it’s ALL14177 ALL14180 and 1-1/2" wide x 4-3/4" tall.
needed.
ALL14176 ...... 2.5 Lb. 3-1/2" Round x 3/4" Tall Fuel Cell Mounting Brackets
ALL14177 ...... 5 Lb. 3-1/2" Round x 1-3/8" Tall
ALL14180 ...... 25 Lb. 4" x 8" x 2" Steel brackets are .125" thick, 1-3/4" wide and avail-
ALL14179 ...... 30 Lb. 2-1/2" x 2-1/2" x 12" able in three lengths. All have 3/8" holes.
ALL14182 ...... 40 Lb. 12" x 3-1/2" x 2-1/2" ALL60060..... 2" Long
ALL60061 ..... 3" Long
Clamp-On 25 Lb. Ballast ALL60062 ..... 4-3/4" Long
ALL14181
Securely add weight where it’s needed. Fuel Cell Guard
Clamp-on design is formed of two ALL22374
halves which bolt together around 1" to Guard adds protection
1-3/4" round tubing, allowing easy installation to the fuel cell and acts
and removal. Bolts are included for use on tubing up to as a lifting point for rear of vehicle. Universal kit is con-
1-5/8". When clamping to 1-3/4" tubing, longer bolts (not structed of 1-3/4", .095" wall, mild steel tubing. Parts are
included) are required. pre-cut and notched, ready to be welded together. Height
is 8-3/4" and mounting width is 42".

www.allstarperformance.com 57
