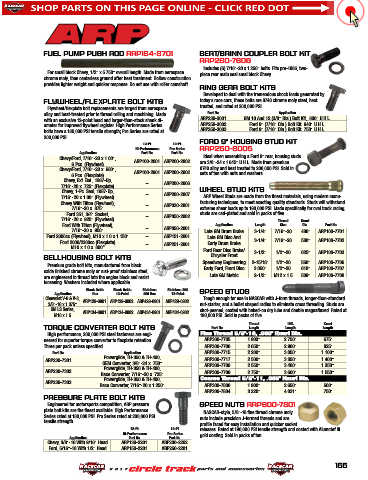

Page 166 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

FUEL PUMP PUSH ROD ARP134-8701 BERT/BRINN COUPLER BOLT KIT
ARP230-7306
Includes (6) 7/16"-20 x 1.250" bolts. Fits pre-1986, two-
For small block Chevy, 1/2" x 5.750" overall length. Made from aerospace piece rear main seal smal block Chevy.
chrome moly, then centerless ground after heat treat ment. Hollow construction
provides lighter weight and quicker response. Do not use with roller camshaft.
RING GEAR BOLT KITS
Developed to deal with the tremendous shock loads generated by
FLYWHEEL/FLEXPLATE BOLT KITS today’s race cars, these bolts are 8740 chrome moly steel, heat
Flywheel/flexplate bolt replacements are forged from aero space treated, and rated at 200,000 PSI.
alloy and heat-treated prior to thread roll ing and machining. Made Part No. Application
with an ex clu sive 12-point head and larger-than-stock shank di- ARP230-3001 GM 10 And 12 (3/8" Dia.) Bolt Kit, .800" U.H.L.
am e ter for im proved fly wheel register. High Performance Series ARP250-3002 Ford 9" (7/16" Dia.) Bolt Kit .940" U.H.L.
Ford 9" (7/16" Dia.) Bolt Kit .750" U.H.L.
ARP250-3003
bolts have a 180,000 PSI tensile strength; Pro Series are rated at
200,000 PSI. FORD 9" HOUSING STUD KIT
12-Pt. 12-Pt.
Hi-Performance Pro Series ARP250-3005
Application Part No. Part No. Ideal when assembling a Ford 9" rear, housing studs
Chevy/Ford, 7/16"-20 x 1.00", ARP100-2801 ARP200-2802
6 Pcs. (Flywheel) are 3/8"-24 x 1.645" U.H.L. Made from premium
Chevy/Ford, 7/16"-20 x .680", ARP100-2901 ARP200-2902 8740 alloy and heat treated to 200,000 PSI. Sold in
6 Pcs. (Flexplate) sets of ten with nuts and washers.
Chevy, Ext. Bal., 1987-Up, – ARP200-2906
7/16"-20 x .725" (Flexplate) WHEEL STUD KITS
Chevy, 1-Pc. Seal, 1987-Up,
7/16"-20 x 1.00" (Flywheel) – ARP200-2807 ARP Wheel Studs are made from the finest materials, using modern manu-
Chevy With Tilton (Flywheel), facturing techniques, to meet ex act ing quality standards. Studs will with stand
7/16"-20 x .875" – ARP330-2801 ex treme shear loads up to 190,000 PSI. Made specifically for oval track racing,
Ford 351, 3/4" Socket, studs are cad-plat ed and sold in packs of five.
7/16"-20 x .925" (Flywheel) – ARP350-2802 Thread Knurl
Ford With Tilton (Flywheel), – ARP350-2801 Application Length Size Dia. Part No.
7/16"-20 x .950" Late GM Drum Brake 3-1/4" 7/16"-20 .486" ARP100-7701
Ford 2000cc (Flywheel), M10 x 1.0 x 1.150" – ARP151-2801 Late GM Disc And
Ford 2000/2300cc (Flexplate) – ARP251-2901 Early Drum Brake 3-1/4" 7/16"-20 .580" ARP100-7702
M10 x 1.0 x .800” Ford Rear Disc Brake/ 3-1/2" 1/2"-20 .625" ARP100-7703
BELLHOUSING BOLT KITS Chrysler Front
Premium grade bolt kits, manufactured from black Speedway Engineering 2-15/16" 1/2"-20 .568" ARP100-7706
oxide finished chrome moly or rust-proof stainless steel, Early Ford, Front Disc 3.050" 1/2"-20 .618" ARP100-7707
are engineered to thread into the engine block and resist Late GM Metric 2-1/2" M12 x 1.5 .509" ARP100-7708
loosening. Washers included where applicable.
Black Oxide Black Oxide Stainless Stainless 300 SPEED STUDS
Application Hex 12-Point 300 Hex 12-Point
Chevrolet V-6 & V-8, Tough enough for use in NASCAR with J-form threads, longer-than-standard
3/8"-16 x 1.375" ARP129-0901 ARP129-0902 ARP429-0901 ARP429-0902 nut-starter, and a bullet shaped radius to eliminate cross threading. Studs are
GM LS Series, ARP134-0901 ARP134-0902 ARP434-0901 ARP434-0902 shot-peened, coated with baked-on dry lube and double magnafluxed. Rated at
M10 x 1.5 190,000 PSI. Sold in packs of five.
Thread UHL Knurl
TORQUE CONVERTER BOLT KITS Part No. Length Length Length
High performance, 200,000 PSI steel fasteners are engi- Fine Thread 5/8"-18, .660" Knurl Dia.
neered for superior torque converter to flexplate retention. ARP300-7705 1.900" 2.750" .675"
Three per pack unless specified. ARP300-7706 2.050" 2.900" .825"
Part No. Application ARP300-7715 2.200" 3.050" 1.100"
Powerglide, TH-350 & TH-400, ARP300-7717 2.500" 3.350" 1.400"
ARP230-7301
OEM Converter, 3/8"-24 x .750" ARP300-7708 2.550" 3.400" 1.350"
Powerglide, TH-350 & TH-400,
ARP230-7302 ARP300-7709 2.750" 3.600" 1.550"
Race Converter, 7/16"-20 x .725"
Powerglide, TH-350 & TH-400, Coarse Thread 5/8"-11, .685" Knurl Dia.
ARP230-7303
Race Converter, 7/16"-20 x 1.250" ARP300-7806 1.900" 2.650" .500"
ARP300-7804 3.220" 4.031" .750"
PRESSURE PLATE BOLT KITS
Engineered for motorsports competition, ARP pressure SPEED NUTS ARP300-7801
plate bolt kits are the finest available. High Performance NASCAR-style, 5/8"-18 fine thread chrome moly
Series rated at 180,000 PSI. Pro Series rated at 200,000 PSI nuts include precision J-formed threads and are
tensile strength. profile faced for easy installation and quicker socket
12-Pt. 12-Pt. releases. Rated at 190,000 PSI tensile strength and coated with Alumotef III
Hi-Performance Pro Series gold coating. Sold in packs of ten.
Application Part No. Part No.
Chevy, 3/8"-16 With 9/16" Head ARP130-2201 ARP230-2202
Ford, 5/16"-18 With 1/2" Head ARP150-2201 ARP250-2201
