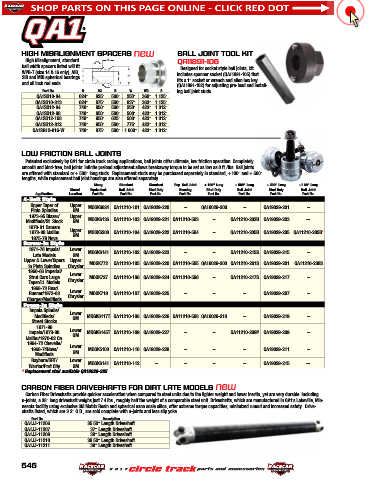

Page 547 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

HIGH MISALIGNMENT SPACERS BALL JOINT TOOL KIT
High Misalignment, standard QA11891-106
ball width spacers listed will fit Designed for socket style ball joints, kit
WPB-T (size 14 & 16 only), AIB, includes spanner socket (QA11891-105) that
SIB and MIB spherical bearings fits a 1" socket or wrench and allen hex key
and all inch rod ends. (QA11891-102) for adjusting pre-load and install-
Part No. D D2 B W W2 S ing ball joint studs.
QA1SG10-84 .624" .825" .500" .250" .360" 1.125"
QA1SG10-813 .624" .875" .500" .837" .363" 1.125"
QA1SG12-84 .749" .850" .500" .250" .423" 1.312"
QA1SG12-88 .749" .850" .500" .500" .423" 1.312"
QA1SG12-108 .749" .950" .625" .500" .423" 1.312"
QA1SG12-812 .749" .950" .500" .775" .423" 1.312"
QA1SG12-816-W .749" .875" .500" 1.000" .423" 1.312"

LOW FRICTION BALL JOINTS
Patented exclusively by QA1 for circle track racing applications, ball joints offer ultimate, low friction operation. Completely
smooth and bind-free, ball joints’ infinite preload adjustment allows breakaway torque to be set as low as 0 ft./lbs. Ball joints
are offered with standard or +.500" long studs. Replacement studs may be purchased separately in standard, +.100" and +.500"
lengths, while replacement ball joint housings are also offered separately.
Moog Standard Standard Rep. Ball Joint +.100" Long +.500" Long +.500" Long +1.00" Long
Mount. Equivalent Ball Joint Stud Only Housing Stud Only Ball Joint Stud Only Ball Joint
Application Location Part No. Part No. Part No. Part No. Part No. Part No. Part No. Part No.
4-Bolt Style
Upper Taper of Upper
Pinto Spindles GM MOGK6024 QA11210-101 QA19029-220 – QA19029-200 – QA19029-201 –
1973-95 Blazer/ Upper
Modifieds/St. Stock GM MOGK6136 QA11210-103 QA19029-221 QA11210-503 – QA11210-203B QA19029-203 –-
1970-81 Camaro
1973-88 Malibu Upper MOGK5208 QA11210-104 QA19029-222 QA11210-504 – QA11210-205B QA19029-205 QA11210-285B*
1975-79 Nova GM
Screw-In Style
1971-76 Impala/ Lower
Late Models GM MOGK6141 QA11210-102 QA19029-223 – – QA11210-215S QA19029-215 –
Upper & LowerTapers Upper MOGK772 QA11210-105 QA19029-220 QA11210-505 QA19029-200 QA11210-201S QA19029-201 QA11210-238S
In Pinto Spindles Chrysler
1960-66 Imperial/ Lower
Strut Cars Large Chrysler MOGK727 QA11210-106 QA19029-224 QA11210-506 – QA11210-217S QA19029-217 –
Taper/Lt. Models
1968-73 Road Lower
Runner/1973-83 Chrysler MOGK719 QA11210-107 QA19029-225 – – – QA19029-207 –
Charger/Modifieds
Press-In Style
Impala Spindle/
Modifieds/ Lower MOGK6117T QA11210-108 QA19029-226 QA11210-508 QA19029-218 – QA19029-219 –
Street Stocks GM
1971-96
Impala/1973-88 Lower MOGK6145T QA11210-109 QA19029-227 – – QA11210-209P QA19029-209 –
Malibu/1970-02 Ca. GM
1964-72 Chevelle/
1968-74Nova/ Lower MOGK5103 QA11210-110 QA19029-228 – – – QA19029-211 –
Modifieds GM
Rayburn/GRT/ Lower MOGK6141 QA11210-112 – – – – QA19029-215 –-
Warrior/Port City GM
* Replacement stud available QA19029-285

CARBON FIBER DRIVESHAFTS FOR DIRT LATE MODELS
Carbon Fiber Driveshafts provide quicker acceleration when compared to steel units due to the lighter weight and lower inertia, yet are very durable. Including
u-joints, a 38" long driveshaft weighs just 7.4 lbs., roughly half the weight of a comparable steel unit. Driveshafts, which are manufactured in QA1’s Lakeville, Min-
nesota facility using exclusive 3M Matrix Resin and spherical nano scale silica, offer extreme torque capacities, minimized runout and increased safety. Drive-
shafts listed, which are 3.2" O.D., are sold complete with u-joints and less slip yoke.
Part No. Description
QA1JJ-11206 35.50" Length Driveshaft
QA1JJ-11207 37" Length Driveshaft
QA1JJ-11209 38" Length Driveshaft
QA1JJ-11210 38.50" Length Driveshaft
QA1JJ-11211 39" Length Driveshaft

546
