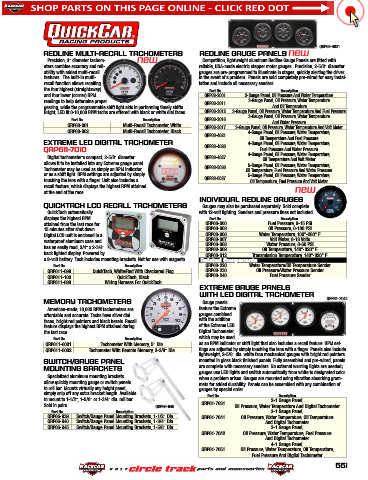

Page 552 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

QRP63-4021
REDLINE MULTI-RECALL TACHOMETERS REDLINE GAUGE PANELS
Precision, 3" diameter tachom- Competition, lightweight aluminum Redline Gauge Panels are fitted with
eters combine accuracy and reli- reliable, USA-made electric stepper motor gauges. Precision, 2-5/8" diameter
ability with added multi-recall gauges are pre-programmed to illuminate in stages, quickly alerting the driver
features. The built-in multi- in the event of a problem. Panels are sold completely pre-wired for easy instal-
recall function allows recalling lation and include all necessary senders.
the four highest (straightaway) Part No. Description
and four lower (corner) RPM QRP63-2001 2-Gauge Panel, Oil Pressure And Water Temperature
readings to help determine proper QRP63-3011 3-Gauge Panel, Oil Pressure, Water Temperature
gearing, while the programmable shift light aids in performing timely shifts. And Oil Temperature
Bright, LED lit 0-10,000 RPM tachs are offered with black or white dial faces. QRP63-3012 3-Gauge Panel, Oil Pressure, Water Temperature And Fuel Pressure
Part No. Description QRP63-3016 3-Gauge Panel, Oil Pressure, Water Temperature
And Water Pressure
QRP63-001 Multi-Recall Tachometer, White QRP63-3017 3-Gauge Panel, Oil Pressure, Water Temperature And Volt Meter
QRP63-002 Multi-Recall Tachometer, Black 4-Gauge Panel, Oil Pressure, Water Temperature,
QRP63-4021 Oil Temperature And Fuel Pressure
EXTREME LED DIGITAL TACHOMETER 4-Gauge Panel, Oil Pressure, Water Temperature,
QRP611-7010 QRP63-4026 Fuel Pressure And Water Pressure
Digital tachometer's compact, 2-5/8" diameter QRP63-4027 4-Gauge Panel, Oil Pressure, Water Temperature,
Oil Temperature And Volt Meter
allows it to be installed into any Extreme gauge panel. 5-Gauge Panel, Oil Pressure, Water Temperature,
Tachometer may be used as simply an RPM indicator, QRP63-5036 Oil Temperature, Fuel Pressure And Water Pressure
or as a shift light. RPM settings are adjusted by simply 5-Gauge Panel, Oil Pressure, Water Temperature,
touching the lens with a finger. Unit also includes a QRP63-5037 Oil Temperature, Fuel Pressure And Volt Meter
recall feature, which displays the highest RPM attained
at the end of the race.
INDIVIDUAL REDLINE GAUGES
QUICKTACH LCD RECALL TACHOMETERS Gauges may also be purchased separately. Sold complete
QuickTach automatically with 12-volt lighting. Senders and pressure lines not included.
displays the highest RPM Part No. Description
attained from the last race for QRP63-000 Fuel Pressure, 0-15 PSI
15 minutes after shut down. QRP63-003 Oil Pressure, 0-100 PSI
Digital LCD unit is enclosed in a QRP63-006 Water Temperature, 100°-280° F.
Volt Meter, 8-18 Volts
waterproof aluminum case and QRP63-007 Water Pressure, 0-60 PSI
QRP63-008
has an easily read, 3/4" x 2-3/4" QRP63-009 Oil Temperature, 140°-320° F.
back lighted display. Powered by QRP63-012 Transmission Temperature, 140°-320° F.
a 9-volt battery. Tach includes mounting brackets. Not for use with magneto. Related Components
Part No. Description QRP63-220 Water Temperature/Oil Temperature Sender
QRP611-099 QuickTach, White/Red With Checkered Flag QRP63-230 Oil Pressure/Water Pressure Sender
QRP611-100 QuickTach, Black QRP63-240 Fuel Pressure Sender
QRP611-098 Wiring Harness For QuickTach
EXTREME GAUGE PANELS
WITH LED DIGITAL TACHOMETER
MEMORY TACHOMETERS Gauge panels QRP61-7042
American-made, 10,000 RPM tachometers are feature the Extreme
affordable and accurate. Tachs have silver dial gauges combined
faces, bright red pointers and black bezels. Recall with the addition
feature displays the highest RPM attained during of the Extreme LED
the last race. Digital Tachometer,
Part No. Description which may be used
QRP611-6001 Tachometer With Memory, 5" Dia. as an RPM indicator or shift light that also includes a recall feature. RPM set-
QRP611-6002 Tachometer With Remote Memory, 3-3/8" Dia. tings are adjusted by simply touching the lens with a finger. Panels also include
lightweight, 2-5/8" dia. white face mechanical gauges with bright red pointers
SWITCH/GAUGE PANEL mounted in gloss black finished panels. Fully assembled and pre-wired, panels
MOUNTING BRACKETS are complete with necessary senders. No external warning lights are needed;
gauges use LED lights and switch automatically from white to designated color
Specialized aluminum mounting brackets when a problem arises. Gauges are mounted using vibration absorbing grom-
allow quickly mounting gauge or switch panels mets for added durability. Panels can be assembled with any combination of
to roll bar. Mounts virtually any height panel, gauges by special order.
simply snip off any extra bracket length. Available Part No. Description
to mount to 1-1/2", 1-5/8" or 1-3/4" dia. roll bar. 2-1 Gauge Panel,
Sold in pairs. QRP66-945 QRP61-7031 Oil Pressure, Water Temperature And Digital Tachometer
Part No. Description 3-1 Gauge Panel,
QRP66-939 Switch/Gauge Panel Mounting Brackets, 1-1/2" Dia. QRP61-7041 Oil Pressure, Water Temperature, Oil Temperature
QRP66-940 Switch/Gauge Panel Mounting Brackets, 1-3/4" Dia. And Digital Tachometer
QRP66-945 Switch/Gauge Panel Mounting Brackets, 1-5/8" Dia. 3-1 Gauge Panel,
QRP61-7042 Oil Pressure, Water Temperature, Fuel Pressure
And Digital Tachometer
4-1 Gauge Panel,
QRP61-7051 Oil Pressure, Water Temperature, Oil Temperature,
Fuel Pressure And Digital Tachometer
551
