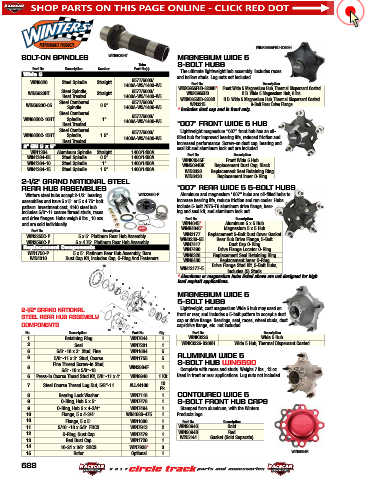

Page 689 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

WINK6955FHD-8208H
BOLT-ON SPINDLES WIN6620HT MAGNESIUM WIDE 5
Tube 8-BOLT HUBS
Part No. Description Camber Part No(s). The ultimate lightweight hub assembly. Includes races
Wide 5 and hollow studs. Lug nuts not included.
6577/6603/
WIN6620 Steel Spindle Straight 1400A-W5/1400-W5 Part No. Description
Steel Spindle, 6577/6603/ WINK6955FHD-8208H* Front Wide 5 Magnesium Hub, Thermal Dispersant Coated
WIN6620HT Straight WINK6955HD H.D. Wide 5 Magnesium Hub, 6 lbs.
Heat Treated 1400A-W5/1400-W5 WINK6955HD-8208H H.D. Wide 5 Magnesium Hub, Thermal Dispersant Coated
Steel Cambered 6577/6603/
WIN6620C-05 0.5° WIN3215 8-Bolt Rear Drive Flange
Spindle 1400A-W5/1400-W5 * Includes dust cap and is front only.
Steel Cambered 6577/6603/
WIN6620C-10HT Spindle, 1° 1400A-W5/1400-W5
Heat Treated “007” FRONT WIDE 5 HUB
Steel Cambered Lightweight magnesium “007” front hub has an oil-
WIN6620C-15HT Spindle, 1.5° 6577/6603/ filled hub for improved bearing life, reduced friction and
Heat Treated 1400A-W5/1400-W5 increased performance. Screw-on dust cap, bearing and
2" GN 5 x 5" seal kit and aluminum lock nut are included.
WIN1384 Aluminum Spindle Straight 1400/1400A
Part No.
Description
WIN1384-05 Steel Spindle 0.5° 1400/1400A WINK4045F Front Wide 5 Hub
WIN1384-10 Steel Spindle 1° 1400/1400A WIN5094BK Replacement Dust Cap, Black
WIN1384-15 Steel Spindle 1.5° 1400/1400A WIN8328 Replacement Seal Retaining Ring
WIN8430 Replacement Inner O-Ring
2-1/2" GRAND NATIONAL STEEL
REAR HUB ASSEMBLIES “007” REAR WIDE 5 5-BOLT HUBS
Winters steel hubs accept 2-1/2" bearing WIN2266C-P Aluminum and magnesium “007” hubs are oil-filled hubs to
assemblies and have 5 x 5" or 5 x 4.75" bolt increase bearing life, reduce friction and run cooler. Hubs
pattern. Investment cast, 4140 steel hub include 5-bolt 7075-T6 aluminum drive flange, bear-
includes 5/8"-11 coarse thread studs, races ing and seal kit, and aluminum lock nut.
and drive flanges. Hubs weigh 9 lbs., 10 ozs. Part No. Description
and are sold individually. WIN4045* Aluminum 5 x 5 Hub
Part No. Description WINK4045* Magnesium 5 x 5 Hub
WIN2255C-P 5 x 5" Platinum Rear Hub Assembly WIN3177 Replacement 5-Bolt Dust Cover Gasket
WIN2566C-P 5 x 4.75" Platinum Rear Hub Assembly WIN3230-55 Rear Hub Drive Flange, 5-Bolt
Dust Cap O-Ring
WIN7417
Replacement Components WIN7490 Drive Flange Locator O-Ring
WIN1750-P 5 x 5" Platinum Rear Hub Assembly, Bare WIN8328 Replacement Seal Retaining Ring
WIN4310 Dust Cap Kit, Includes Cap, O-Ring And Fasteners WIN8430 Replacement Inner O-Ring
15 Drive Flange Stud Kit, 5-Bolt Hubs,
WIN12177-5 Includes (5) Studs
1 * Aluminum or magnesium hubs listed above are not designed for high
2 load asphalt applications.
3
4 5
6 MAGNESIUM WIDE 5
7
5-BOLT HUBS
4
2-1/2" GRAND NATIONAL 9 3 Lightweight, cast magnesium Wide 5 hub may used on
8 front or rear, and includes a 5-bolt pattern to accept a dust
STEEL REAR HUB ASSEMBLY 11 cap or drive flange. Bearings, seal, races, wheel studs, dust
COMPONENTS 14 cap/drive flange, etc. not included.
10 12
No. Description 13 Part No. Qty. Part No. Description
1 Retaining Ring WIN7644 1 WINK3226 Wide 5 Hub
2 Seal WIN7201 1 WINK3226-8208H Wide 5 Hub, Thermal Dispersant Coated
6 5/8"-18 x 3" Stud, Fine WIN1684 5
6 5/8"-11 x 3" Stud, Coarse WIN1755 5 ALUMINUM WIDE 5
Fine Thread Screw-In Stud, 8-BOLT HUB WIN6690
6 WIN2884F 1
5/8"-18 x 5/8"-18 Complete with races and studs. Weighs 7 lbs., 12 oz.
6 Press-In Coarse Thead Stud Kit, 5/8"-11 x 4" WIN8940 1 Kit Used in front or rear applications. Lug nuts not included.
10
7 Steel Coarse Thread Lug Nut, 5/8”-11 ALL44106
Pk.
8 Bearing Lock Washer WIN7118 1 CONTOURED WIDE 5
9 O-Ring, Hub 5 x 5" WIN7478 1 8-BOLT FRONT HUB CAPS
9 O-Ring, Hub 5 x 4-3/4" WIN7494 1 Stamped from aluminum, with the Winters
10 Flange, 5 x 4-3/4" WIN1680-475 1 Products logo.
10 Flange, 5 x 5" WIN1680 1 Part No. Description
11 5/16"-18 x 5/8" FHCS WIN7913 2 WIN5094G Gold
12 O-Ring, Dust Cap WIN7479 1 WIN5094R Red
13 Red Dust Cap WIN1726 1 WIN5144 Gasket (Sold Separate)
14 10-24 x 3/8" SHCS WIN7938* 3
15 Rotor Optional 1 WIN5094R
688
