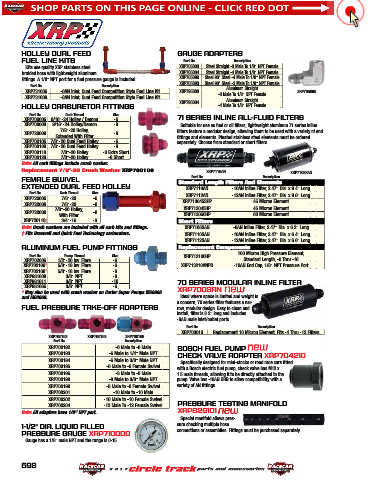

Page 699 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

HOLLEY DUAL FEED GAUGE ADAPTERS
FUEL LINE KITS Part No. Description
Kits use quality XRP stainless steel XRP705003 Steel Straight -3 Male To 1/8" NPT Female
braided hose with lightweight aluminum XRP705004 Steel Straight -4 Male To 1/8" NPT Female
fittings. A 1/8" NPT port for a fuel pressure gauge is included. XRP705090 Steel 90° Steel -4 Male To 1/8" NPT Female
Part No. Description XRP705093 Steel 90° Steel -3 Male To 1/8" NPT Female
XRP731006 -6AN Inlet, Dual Feed Competition Style Fuel Line Kit XRP795003 Aluminum Straight XRP705090
XRP731008 -8AN Inlet, Dual Feed Competition Style Fuel Line Kit -3 Male To 1/8" NPT Female
XRP795004 Aluminum Straight
HOLLEY CARBURETOR FITTINGS -4 Male To 1/8" NPT Female
Part No. Carb Thread Size
XRP700006 9/16"-24 Holley / Demon -6 71 SERIES INLINE ALL-FLUID FILTERS
XRP700008 9/16"-24 Holley/Demon -8 Suitable for use as fuel or oil filters, lightweight aluminum 71 series inline
7/8"-20 Holley, filters feature a modular design, allowing them to be used with a variety of end
XRP720009 -8
Extended With Filter fittings and elements. Pleated stainless steel elements must be ordered
XRP700106 7/8"-20 Dual Feed Holley -6 separately. Choose from standard or short filters.
XRP700108 7/8"-20 Dual Feed Holley -8
XRP700118 7/8"-20 Holley -8 Extra Short
XRP700128 7/8"-20 Holley -8 Short
Note: All carb fittings include crush washer.
Replacement 7/8"-20 Crush Washer XRP700100 XRP7110AN XRP7108SAN
FEMALE SWIVEL Part No. Description
EXTENDED DUAL FEED HOLLEY Standard Length Filters And Elements
-10AN Inline Filter, 2.47" Dia. x 9.4" Long
XRP7110AN
Part No. Carb Thread Size XRP7112AN -12AN Inline Filter, 2.47" Dia. x 9.6" Long
XRP720006 7/8"-20 -6
XRP720008 7/8"-20 -8 XRP713045SHP 45 Micron Element
7/8"-20 Holley, XRP713045HP 45 Micron Element
XRP720009 -8
With Filter XRP713060HP 60 Micron Element
XRP720118 † 3/4"-16 -8 Short Filters
Note: Crush washers are included with all carb kits and fittings. XRP7108SAN -8AN Inline Filter, 2.47" Dia. x 6.2" Long
† Fits Braswell and Quick Fuel Technology carburetors. XRP7110SAN -10AN Inline Filter, 2.47" Dia. x 6.4" Long
XRP7112SAN -12AN Inline Filter, 2.47" Dia. x 6.6" Long
ALUMINUM FUEL PUMP FITTINGS Replacement Components
Part No. Pump Thread Size XRP713100HP 100 Micron High Pressure Element,
XRP702006 1/2"-20 Inv. Flare -6 Standard Length, -6 Thru -16
XRP702106* 5/8"-18 Inv. Flare -6 XRP713210ANPD -10AN End Cap, 1/8" NPT Pressure Port
XRP702108* 5/8"-18 Inv. Flare -8
XRP981608 3/8" NPT -8
XRP981611 3/8" NPT -10 70 SERIES MODULAR INLINE FILTER
XRP981666 3/8" NPT -6
* May also be used with crush washer on Carter Super Pumps M60968 XRP7008AN
and M60969. Ideal where space is limited and weight is
a concern, 70 series filter features a nar-
FUEL PRESSURE TAKE-OFF ADAPTERS row, modular design. Easy to clean and
install, filter is 6.2" long and includes
-8AN male inlet/outlet ports.
Part No. Description
XRP703010 Replacement 10 Micron Element, Fits -4 Thru -12 Filters
XRP700192 XRP700193 XRP700199
Part No. Description
XRP700192 -6 Male to -6 Male BOSCH FUEL PUMP
XRP700193 -6 Male to 1/4" Male NPT CHECK VALVE ADAPTER XRP704210
XRP700194 -6 Male to 3/8" Male NPT Specifically designed for mini-stocks or road race cars fitted
XRP700195 -6 Male to -6 Female Swivel with a Bosch electric fuel pump, check valve has M12 x
XRP700196 -8 Male to -8 Male 1.5 male threads, allowing it to be directly attached to the
XRP700198 -8 Male to 3/8" Male NPT pump. Valve has -10AN ORB to allow compatibility with a
XRP700199 -8 Male to -8 Female Swivel variety of AN fittings.
XRP700201 -10 Male to -10 Male
XRP700202 -10 Male to -10 Female Swivel
XRP700204 -12 Male To -12 Female Swivel PRESSURE TESTING MANIFOLD
Note: All adapters have 1/8" NPT port. XRP329101
Special manifold allows pres-
1-1/2" DIA. LIQUID FILLED sure checking multiple hose
connections or assemblies. Fittings must be purchased separately.
PRESSURE GAUGE XRP710000
Gauge has a 1/8" male NPT and the range is 0-15.

698
