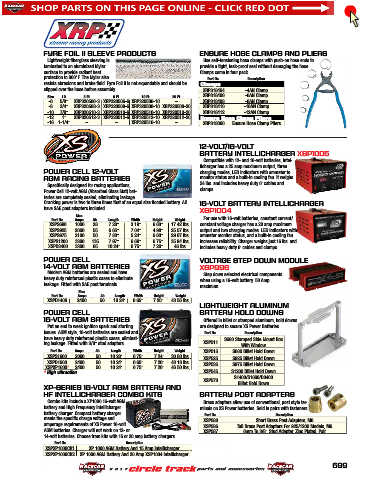

Page 700 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

FYRE FOIL II SLEEVE PRODUCTS ENSURE HOSE CLAMPS AND PLIERS
Lightweight fiberglass sleeving is Use self-tensioning hose clamps with push-on hose ends to
laminated to an aluminized Mylar provide a tight, leak-proof seal without damaging the hose.
surface to provide radiant heat Clamps come in four pack.
protection to 800°F. The Mylar also Part No. Description
resists abrasions and brake fluid. Fyre Foil II is not expandable and should be Clamps
slipped over the hose before assembly. XRP818404 -4AN Clamp
Size I.D. 3 Ft. 6 Ft. 10 Ft. 20 Ft. XRP818406 -6AN Clamp
-6 5/8" XRP320506-3 XRP320506-6 XRP320506-10 – XRP818408 -8AN Clamp
-8 3/4" XRP320508-3 XRP320508-6 XRP320508-10 XRP320508-20 XRP818410 -10AN Clamp
-10 7/8" XRP320510-3 XRP320510-6 XRP320510-10 XRP320510-20 XRP818412 -12AN Clamp
-12 1" XRP320512-3 XRP320512-6 XRP320512-10 XRP320512-20 Ensure Hose Clamp Pliers
-16 1-1/4" – – XRP320516-10 – XRP818000 Ensure Hose Clamp Pliers

12-VOLT/16-VOLT
BATTERY INTELLICHARGER XSP1005
Compatible with 12- and 16-volt batteries, Intel-
licharger has a 25 amp maximum output, three
POWER CELL 12-VOLT charging modes, LED indicators with ammeter to
AGM RACING BATTERIES monitor status and a built-in cooling fan. It weighs
Specifically designed for racing applications, 24 lbs. and includes heavy duty 6' cables and
Power Cell 12-volt AGM (Absorbed Glass Mat) bat- clamps.
teries are completely sealed, eliminating leakage.
Cranking power is two to three times that of an equal size flooded battery. All 16-VOLT BATTERY INTELLICHARGER
have SAE post adapters included. XSP1004
Max
Part No. Amps Ah Length Width Height Weight For use with 16-volt batteries, constant current/
XSPS680 1000 28 7.28" 3.19" 6.63" 17.42 lbs. constant voltage charger has a 20 amp maximum
XSPS925 2000 55 6.65" 7.04" 4.98" 25.57 lbs. output and two charging modes. LED indicators with
XSPS975 2100 50 7.83" 5.24" 6.63" 29.07 lbs. ammeter monitor status, and a built-in cooling fan
XSPS1200 3300 135 7.97" 6.69" 6.75" 35.94 lbs. increases reliability. Charger weighs just 16 lbs. and
XSPD3400 3300 65 10.24" 6.75" 7.20" 46 lbs. includes heavy duty 6' cables and clamps.
POWER CELL VOLTAGE STEP DOWN MODULE
14-VOLT AGM BATTERIES XSP993
Modern AGM batteries are sealed and have Step down selected electrical components
heavy duty reinforced plastic cases to eliminate when using a 16-volt battery. 50 Amp
leakage. Fitted with SAE post terminals. maximum.
Max.
Part No. Amps Ah Length Width Height Weight
XSPD1400 2400 50 10.24" 6.65" 7.20" 43.56 lbs.
LIGHTWEIGHT ALUMINUM
POWER CELL BATTERY HOLD DOWNS
16-VOLT AGM BATTERIES Offered in billet or stamped aluminum, hold downs
Put an end to weak ignition spark and starting are designed to secure XS Power Batteries.
issues. AGM style, 16-volt batteries are sealed and Part No. Description
have heavy duty reinforced plastic cases, eliminat- S680 Stamped Side Mount Box
ing leakage. Fitted with 3/8" stud adapters. XSP511 With Window
Part No. Amps Ah Length Width Height Weight XSP515 S680 Billet Hold Down
XSPS1600 2000 50 10.28" 6.75" 7.24" 30.80 lbs. XSP525 S925 Billet Hold Down
XSPD1600 2400 50 10.24" 6.65" 7.20" 48.18 lbs. XSP535 S975 Billet Hold Down
XSPXP1000* 2400 50 10.24" 6.75" 7.20" 46.50 lbs.
* High vibraction XSP545 S1200 Billet Hold Down
XSP573 S1400/S1600/D3400
Billet Hold Down
XP-SERIES 16-VOLT AGM BATTERY AND
HF INTELLICHARGER COMBO KITS BATTERY POST ADAPTERS
Combo kits include a XP1000 16-volt AGM Brass adapters allow use of conventional, post style ter-
battery and High Frequency Intellicharger minals on XS Power batteries. Sold in pairs with fasteners.
battery charger. Compact battery charger Part No. Description
meets the specific charge voltage and XSP580 Short Brass Post Adapters, M6
amperage requirements of XS Power 16-volt XSP586 Tall Brass Post Adapters For 925/1200 Models, M6
AGM batteries. Charger will not work on 12- or XSP587 6mm To 3/8" Stud Adapter, Zinc Plated, Pair
14-volt batteries. Choose from kits with 15 or 20 amp battery chargers.
Part No. Description
XSPXP1000CK1 XP 1000 AGM Battery And 15 Amp Intellicharger
XSPXP1000CK2 XP 1000 AGM Battery And 20 Amp XSP1004 Intellicharger
