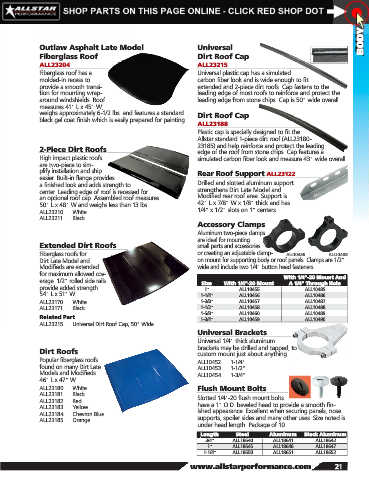

Page 23 - 2020 Allstar Performance Parts and Equipment Catalog

BODY

Outlaw Asphalt Late Model Universal
Fiberglass Roof Dirt Roof Cap
ALL23204 ALL23215
Fiberglass roof has a Universal plastic cap has a simulated
molded-in recess to carbon fiber look and is wide enough to fit
provide a smooth transi- extended and 2-piece dirt roofs. Cap fastens to the
tion for mounting wrap- leading edge of most roofs to reinforce and protect the
around windshields. Roof leading edge from stone chips. Cap is 50" wide overall.
measures 41" L x 45" W,
weighs approximately 6-1/2 lbs. and features a standard Dirt Roof Cap
black gel coat finish which is easily prepared for painting.
ALL23188
Plastic cap is specially designed to fit the
Allstar standard 1-piece dirt roof (ALL23180-
23185) and help reinforce and protect the leading
2-Piece Dirt Roofs
edge of the roof from stone chips. Cap features a
High impact plastic roofs simulated carbon fiber look and measure 43" wide overall.
are two-piece to sim-
plify installation and ship
easier. Built-in flange provides Rear Roof Support ALL23122
a finished look and adds strength to Drilled and slotted aluminum support
center. Leading edge of roof is recessed for strengthens Dirt Late Model and
an optional roof cap. Assembled roof measures Modified rear roof area. Support is
50" L x 48" W and weighs less than 13 lbs. 42" L x 7/8" W x 1/8" thick and has
1/4" x 1/2" slots on 1" centers.
ALL23210 ..... White
ALL23211 ..... Black
Accessory Clamps
Aluminum two-piece clamps
are ideal for mounting
Extended Dirt Roofs small parts and accessories
Fiberglass roofs for or creating an adjustable clamp- ALL10456 ALL10488
Dirt Late Model and on mount for supporting body or roof panels. Clamps are 1/2"
Modifieds are extended wide and include two 1/4" button head fasteners.
for maximum allowed cov- With 1/4"-20 Mount And
erage. 1/2" rolled side rails Size With 1/4"-20 Mount A 1/4" Through Hole
provide added strength. 1" ALL10455 ALL10485
54" L x 51" W. 1-1/4" ALL10456 ALL10486
ALL23170 ..... White 1-3/8" ALL10457 ALL10487
ALL23171 ..... Black 1-1/2" ALL10458 ALL10488
1-5/8" ALL10460 ALL10489
Related Part 1-3/4" ALL10459 ALL10490
ALL23215 ..... Universal Dirt Roof Cap, 50" Wide
Universal Brackets
Universal 1/4" thick aluminum
brackets may be drilled and tapped, to
Dirt Roofs
custom mount just about anything.
Popular fiberglass roofs ALL10452 ..... 1-1/4"
found on many Dirt Late ALL10453 ..... 1-1/2"
Models and Modifieds. ALL10454 ..... 1-3/4"
46" L x 47" W.
ALL23180 ..... White Flush Mount Bolts
ALL23181 ..... Black Slotted 1/4"-20 flush mount bolts
ALL23182 ..... Red
ALL23183 ..... Yellow have a 1" O.D. beveled head to provide a smooth fin-
ALL23184 ..... Chevron Blue ished appearance. Excellent when securing panels, nose
ALL23185 ..... Orange supports, spoiler sides and many other uses. Size noted is
under head length. Package of 10.
Length Steel Aluminum Black Aluminum
3/4" ALL18640 ALL18641 ALL18642
1" ALL18645 ALL18646 ALL18647
1-1/4" ALL18650 ALL18651 ALL18652
