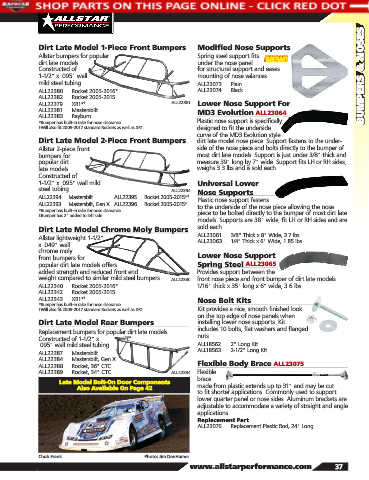

Page 39 - 2018 Allstar Performance Parts and Equipment Catalog

Dirt Late Model 1-Piece Front Bumpers Modified Nose Supports
Allstar bumpers for popular Spring steel support fits NEW!
dirt late models. under the nose panel
Constructed of for structural support and eases
1-1/2" x .095" wall mounting of nose valances. BUMPERS & NOSES
mild steel tubing. ALL23073 ..... Plain
ALL22380 ..... Rocket 2005-2016* ALL23074 ..... Black
ALL22382 ..... Rocket 2005-2015
ALL22379 ..... XR1* † ALL22381 Lower Nose Support For
ALL22381 ..... Mastersbilt MD3 Evolution ALL23064
ALL22383 ..... Rayburn
*Bumper has built-in rake for nose clearance. Plastic nose support is specifically
†Will also fit 2005-2017 standard Rockets as well as XR1. designed to fit the underside
curve of the MD3 Evolution style
Dirt Late Model 2-Piece Front Bumpers dirt late model nose piece. Support fastens to the under-
Allstar 2-piece front side of the nose piece and bolts directly to the bumper of
bumpers for most dirt late models. Support is just under 3/8" thick and
popular dirt measure 39" long by 7" wide. Support fits LH or RH sides,
late models. weighs 3.3 lbs and is sold each.
Constructed of
1-1/2" x .095" wall mild Universal Lower
steel tubing. ALL22394 Nose Supports
ALL22394 ....Mastersbilt ALL22395 .....Rocket 2005-2015* ‡ Plastic nose support fastens
ALL22393.....Mastersbilt, Gen X ALL22396 .....Rocket 2005-2015*
to the underside of the nose piece allowing the nose
*Bumper has built-in rake for nose clearance.
‡Bumper has 2" added to left side. piece to be bolted directly to the bumper of most dirt late
models. Supports are 38" wide, fit LH or RH sides and are
Dirt Late Model Chrome Moly Bumpers sold each.
Allstar lightweight 1-1/2" ALL23061 ..... 3/8" Thick x 8" Wide, 3.7 lbs
x .049" wall ALL23063 ..... 1/4" Thick x 6" Wide, 1.85 lbs
chrome moly
front bumpers for Lower Nose Support
popular dirt late models offers Spring Steel ALL23065
added strength and reduced front end Provides support between the
weight compared to similar mild steel bumpers. ALL22340 front nose piece and front bumper of dirt late models.
ALL22340 ..... Rocket 2005-2016* 1/16" thick x 35" long x 6" wide, 3.6 lbs.
ALL22342 ..... Rocket 2005-2015
ALL22343 ..... XR1* † Nose Bolt Kits
*Bumper has built-in rake for nose clearance.
†Will also fit 2005-2017 standard Rockets as well as XR1. Kit provides a nice, smooth finished look
on the top edge of nose panels when
Dirt Late Model Rear Bumpers installing lower nose supports. Kit
Replacement bumpers for popular dirt late models. includes 10 bolts, flat washers and flanged
Constructed of 1-1/2" x nuts.
.095" wall mild steel tubing. ALL18562 ..... 2" Long Kit
ALL22387 ..... Mastersbilt ALL18563 ..... 2-1/2" Long Kit
ALL22384 ..... Mastersbilt, Gen X
ALL22388 ..... Rocket, 36" CTC Flexible Body Brace ALL23075
ALL22389 ..... Rocket, 34" CTC ALL22384 Flexible
brace
Late Model Bolt-On Door Components made from plastic extends up to 31" and may be cut
Also Available On Page 42
to fit shorter applications. Commonly used to support
lower quarter panel or nose sides. Aluminum brackets are
adjustable to accommodate a variety of straight and angle
applications.
Replacement Part
ALL23076 ..... Replacement Plastic Rod, 24" Long

Chub Frank Photo: Jim DenHamer
www.allstarperformance.com 37
