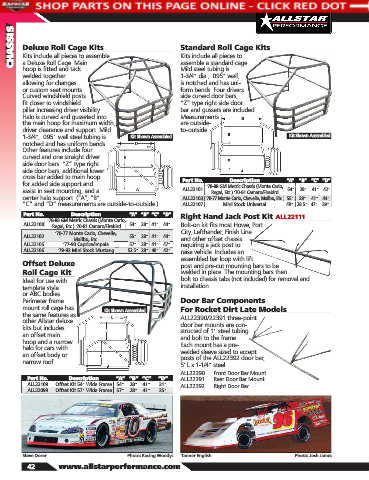

Page 44 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS Deluxe Roll Cage Kits Standard Roll Cage Kits

Kits include all pieces to
Kits include all pieces to assemble
a Deluxe Roll Cage. Main
Mild steel tubing is
hoop is fitted and tack assemble a standard cage.
welded together 1-3/4" dia., .095" wall,
allowing for changes is notched and has uni-
or custom seat mounts. form bends. Four drivers
Curved windshield posts side curved door bars,
fit closer to windshield “Z” type right side door
pillar increasing driver visibility. bar and gussets are included.
Halo is curved and gusseted into Measurements D
the main hoop for maximum width, are outside-
driver clearance and support. Mild to-outside.
1-3/4", .095" wall steel tubing is Kit Shown Assembled Kit Shown Assembled
notched and has uniform bends. D
Other features include four
curved and one straight driver B
side door bars. “Z” type right
side door bars, additional lower
cross bar added to main hoop
Description
for added side support and C Part No. ’78-88 GM Metric Chassis (Monte Carlo, “A” “B” “C” “D”
assist in seat mounting, and a A ALL22101 Regal, Etc.) ’70-81 Camaro/Firebird 54" 28" 41" 42"
center halo support. (“A”, “B”, ALL22103 ’70-77 Monte Carlo, Chevelle, Malibu, Etc. 55" 28" 41" 44"
“C” and “D” measurements are outside-to-outside.) ALL22107 Mini Stock Universal 49" 28.5" 47" 39"
Part No. Description “A” “B” “C” “D” Right Hand Jack Post Kit ALL22111
’78-88 GM Metric Chassis (Monte Carlo,
ALL22100 54" 28" 41" 44" Bolt-on kit fits most Howe, Port
Regal, Etc.) ’70-81 Camaro/Firebird
’70-77 Monte Carlo, Chevelle, City, Lefthander, Finish Line
ALL22102 55" 28" 41" 44"
Malibu, Etc. and other offset chassis
ALL22105 ’77-90 Caprice/Impala 57" 28" 41" 47" requiring a jack post to
ALL22106 ’79-93 Mini Stock Mustang 52.5" 28" 40" 42" raise vehicle. Includes an
assembled bar loop with lift
Offset Deluxe post and pre-cut mounting bars to be
Roll Cage Kit welded in place. The mounting bars then
Ideal for use with bolt to chassis tabs (not included) for removal and
template style installation.
or ABC bodies.
Perimeter frame Door Bar Components
mount roll cage has Kit Shown Assembled For Rocket Dirt Late Models
the same features as ALL22390/22391 three-point
other Allstar deluxe door bar mounts are con-
kits but includes structed of 1" steel tubing
an offset main and bolt to the frame.
hoop and a narrow Each mount has a pre-
halo for cars with welded sleeve sized to accept
an offset body or posts of the ALL22392 door bar,
narrow roof.
5' L x 1-1/4" steel.
ALL22390 ..... Front Door Bar Mount
Part No. Description “A” “B” “C” “D” ALL22391 ..... Rear Door Bar Mount
ALL22109 Offset Kit 54" Wide Frame 54" 28" 41" 31" ALL22392 ..... Right Door Bar
ALL22099 Offset Kit 57" Wide Frame 57" 28" 41" 35"

Steve Dorer Photo: Racing Woodys Tanner English Photo: Josh James
42 www.allstarperformance.com
