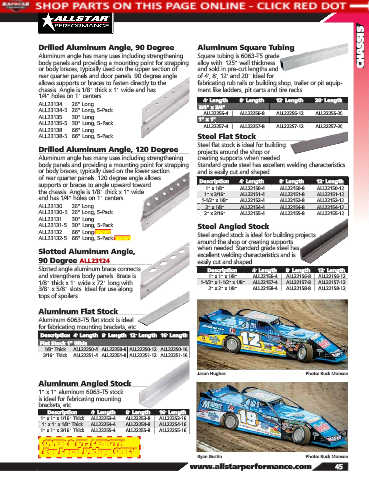

Page 47 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS

Drilled Aluminum Angle, 90 Degree Aluminum Square Tubing
Aluminum angle has many uses including strengthening Square tubing is 6063-T5 grade
body panels and providing a mounting point for strapping alloy with .125" wall thickness
or body braces, typically used on the upper section of and sold in pre-cut lengths and
rear quarter panels and door panels. 90 degree angle of 4', 8', 12' and 20'. Ideal for
allows supports or braces to fasten directly to the fabricating rub rails or building shop, trailer or pit equip-
chassis. Angle is 1/8" thick x 1" wide and has ment like ladders, pit carts and tire racks.
1/4" holes on 1" centers.
4' Length 8' Length 12' Length 20' Length
ALL23134 ..... 26" Long 3/4" x 3/4"
ALL23134-5 .. 26" Long, 5-Pack ALL22256-4 ALL22256-8 ALL22256-12 ALL22256-20
ALL23135 ..... 30" Long 1" x 1"
ALL23135-5 .. 30" Long, 5-Pack ALL22257-4 ALL22257-8 ALL22257-12 ALL22257-20
ALL23138 ..... 66" Long
ALL23138-5 .. 66" Long, 5-Pack Steel Flat Stock
Steel flat stock is ideal for building
Drilled Aluminum Angle, 120 Degree projects around the shop or
Aluminum angle has many uses including strengthening creating supports when needed.
body panels and providing a mounting point for strapping Standard grade steel has excellent welding characteristics
or body braces, typically used on the lower section and is easily cut and shaped.
of rear quarter panels. 120 degree angle allows Description 4' Length 8' Length 12' Length
supports or braces to angle upward toward
1" x 1/8"
the chassis. Angle is 1/8" thick x 1" wide 1" x 3/16" ALL22150-4 ALL22150-8 ALL22150-12
ALL22151-8
ALL22151-12
ALL22151-4
and has 1/4" holes on 1" centers. 1-1/2" x 1/8" ALL22152-4 ALL22152-8 ALL22152-12
ALL23130 ..... 26" Long 2" x 1/8" ALL22154-4 ALL22154-8 ALL22154-12
ALL23130-5 .. 26" Long, 5-Pack 2" x 3/16" ALL22155-4 ALL22155-8 ALL22155-12
ALL23131 ..... 30" Long
ALL23131-5 .. 30" Long, 5-Pack Steel Angled Stock
ALL23132 ..... 66" Long NEW! Steel angled stock is ideal for building projects
ALL23132-5 .. 66" Long, 5-Pack NEW!
around the shop or creating supports
when needed. Standard grade steel has
Slotted Aluminum Angle,
excellent welding characteristics and is
90 Degree ALL23124 easily cut and shaped.
Slotted angle aluminum brace connects Description 4' Length 8' Length 12' Length
and strengthens body panels. Brace is 1" x 1" x 1/8" ALL22156-4 ALL22156-8 ALL22156-12
1/8" thick x 1" wide x 72" long with 1-1/2" x 1-1/2" x 1/8" ALL22157-4 ALL22157-8 ALL22157-12
3/8" x 5/8" slots. Ideal for use along 2" x 2" x 1/8" ALL22158-4 ALL22158-8 ALL22158-12
tops of spoilers.

Aluminum Flat Stock
Aluminum 6063-T5 flat stock is ideal
for fabricating mounting brackets, etc.
Description 4' Length 8' Length 12' Length 16' Length
Flat Stock 1" Wide
1/8" Thick ALL22250-4 ALL22250-8 ALL22250-12 ALL22250-16
3/16" Thick ALL22251-4 ALL22251-8 ALL22251-12 ALL22251-16

Jason Hughes Photo: Buck Monson
Aluminum Angled Stock
1" x 1" aluminum 6063-T5 stock
is ideal for fabricating mounting
brackets, etc.
Description 4' Length 8' Length 16' Length
1" x 1" x 1/16" Thick ALL22253-4 ALL22253-8 ALL22253-16
1" x 1" x 1/8" Thick ALL22254-4 ALL22254-8 ALL22254-16
1" x 1" x 3/16" Thick ALL22255-4 ALL22255-8 ALL22255-16
OVER 8 FT. LENGTH
For Local Pickup ONLY
Ryan Gustin Photo: Buck Monson
www.allstarperformance.com 45
