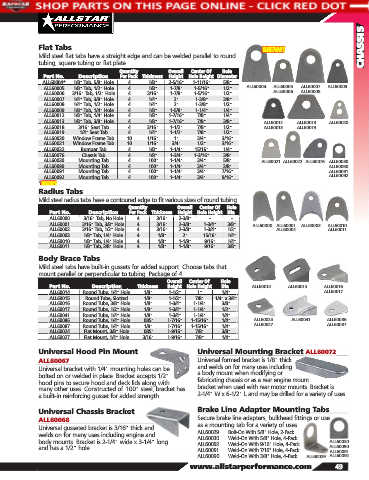

Page 51 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS

Flat Tabs NEW!
Mild steel flat tabs have a straight edge and can be welded parallel to round
tubing, square tubing or flat plate.
Quantity Overall Center Of Hole
Part No. Description Per Pack Thickness Height Hole Height Diameter
ALL60004* 1/8" Tab, 5/8" Hole 4 1/8" 2-5/16" 1-11/16" 5/8"
ALL60005 1/8" Tab, 1/2" Hole 4 1/8" 1-7/8" 1-5/16" 1/2" ALL60004 ALL60005 ALL60007 ALL60009
ALL60006
ALL60008
ALL60006 3/16" Tab, 1/2" Hole 4 3/16" 1-7/8" 1-5/16" 1/2"
ALL60007 1/4" Tab, 3/8" Hole 4 1/4" 2" 1-3/8" 3/8"
ALL60008 1/4" Tab, 1/2" Hole 4 1/4" 2" 1-3/8" 1/2"
ALL60009 1/8" Tab, 1/4" Hole 4 1/8" 1-5/8" 1-1/4" 1/4"
ALL60012 1/8" Tab, 1/4" Hole 4 1/8" 1-7/16" 7/8" 1/4"
ALL60013 1/8" Tab, 3/8" Hole 4 1/8" 1-7/16" 7/8" 3/8" ALL60012 ALL60018 ALL60020
ALL60018 3/16" Seat Tab 4 3/16" 1-1/2" 7/8" 1/2" ALL60013 ALL60019
ALL60019 1/4" Seat Tab 4 1/4" 1-1/2" 7/8" 1/2"
ALL60020 Window Frame Tab 10 1/16" 1" 3/4" 3/16"
ALL60021 Window Frame Tab 10 1/16" 3/4" 1/2" 3/16"
ALL60022 Bumper Tab 4 1/8" 1-1/4" 15/16" 1/4"
ALL60076 Chassis Tab 4 1/8" 1-3/4" 1-3/16" 3/8"
ALL60030 Mounting Tab 4 .100" 1-1/4" 3/4" 5/8" ALL60021 ALL60022 ALL60076 ALL60030
ALL60090 Mounting Tab 4 .100" 1-1/4" 3/4" 3/8" ALL60090
ALL60091 Mounting Tab 4 .100" 1-1/4" 3/4" 7/16" ALL60091
ALL60092 Mounting Tab 4 .100" 1-1/4" 3/4" 9/16" ALL60092
*NEW!
Radius Tabs
Mild steel radius tabs have a contoured edge to fit various sizes of round tubing.
Quantity Overall Center Of Hole
Part No. Description Per Pack Thickness Height Hole Height Dia.
ALL60000 3/16" Tab, No Hole 4 3/16" 2-3/8" - -
ALL60001 3/16" Tab, 3/8" Hole 4 3/16" 2-3/8" 1-3/4" 3/8" ALL60000 ALL60001 ALL60003 ALL60010
ALL60002 3/16" Tab, 1/2" Hole 4 3/16" 2-3/8" 1-3/4" 1/2" ALL60002 ALL60011
ALL60003 1/8" Tab, 1/4" Hole 4 1/8" 2" 15/16" 1/4"
ALL60010 1/8" Tab, 1/4" Hole 4 1/8" 1-1/8" 9/16" 1/4"
ALL60011 1/8" Tab, 3/8" Hole 4 1/8" 1-1/8" 9/16" 3/8"
Body Brace Tabs
Mild steel tabs have built-in gussets for added support. Choose tabs that
mount parallel or perpendicular to tubing. Package of 4.
Overall Center Of Hole
Part No. Description Thickness Height Hole Height Dia. ALL60014 ALL60015 ALL60016
ALL60014 Round Tube, 1/4" Hole 1/8" 1-1/2" 1" 1/4" ALL60017
ALL60015 Round Tube, Slotted 1/8" 1-1/2" 7/8" 1/4" x 3/4"
ALL60016 Round Tube, 3/8" Hole 1/8" 1-3/4" 1-1/4" 3/8"
ALL60017 Round Tube, 1/2" Hole 1/8" 1-3/4" 1-1/4" 1/2"
ALL60041 Round Tube, 1/4" Hole 1/8" 1-3/4" 1-1/4" 1/4"
ALL60086 Round Tube, 1/4" Hole .085" 1-7/16" 1-15/16" 1/4" ALL60024 ALL60041 ALL60086
ALL60087 Round Tube, 1/4" Hole 1/8" 1-7/16" 1-15/16" 1/4" ALL60027 ALL60087
ALL60024 Flat Mount, 3/8" Hole .085" 1-9/16" 7/8" 3/8"
ALL60027 Flat Mount, 1/4" Hole 3/16" 1-9/16" 7/8" 1/4"

Universal Hood Pin Mount Universal Mounting Bracket ALL60072
ALL60067 Universal formed bracket is 1/8" thick
Universal bracket with 1/4" mounting holes can be and welds on for many uses including
bolted on or welded in place. Bracket accepts 1/2" a body mount when modifying or
hood pins to secure hood and deck lids along with fabricating chassis or as a rear engine mount
many other uses. Constructed of .100" steel, bracket has bracket when used with rear motor mounts. Bracket is
a built-in reinforcing gusset for added strength. 2-1/4" W x 6-1/2" L and may be drilled for a variety of uses.

Universal Chassis Bracket Brake Line Adapter Mounting Tabs
ALL60068 Secure brake line adapters, bulkhead fittings or use
Universal gusseted bracket is 3/16" thick and as a mounting tab for a variety of uses.
welds on for many uses including engine and ALL60029 ......Bolt-On With 5/8" Hole, 2-Pack
body mounts. Bracket is 2-1/4" wide x 3-1/4" long ALL60030 ......Weld-On With 5/8" Hole, 4-Pack ALL60030
ALL60092 ......Weld-On With 9/16" Hole, 4-Pack
and has a 1/2" hole. ALL60091 ......Weld-On With 7/16" Hole, 4-Pack ALL60090
ALL60091
ALL60090 ......Weld-On With 3/8" Hole, 4-Pack ALL60029 ALL60092
