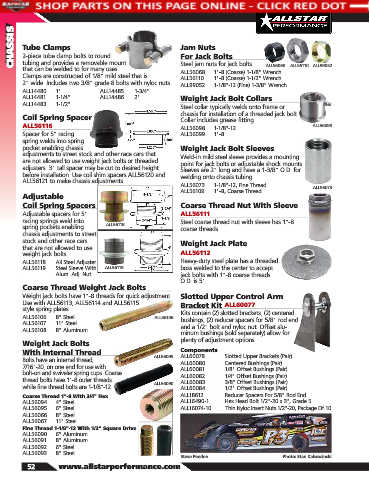

Page 54 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS Tube Clamps Jam Nuts

For Jack Bolts
2-piece tube clamp bolts to round
tubing and provides a removable mount
that can be welded to for many uses.
ALL56068 ..... 1"-8 (Coarse) 1-1/8" Wrench
Clamps are constructed of 1/8" mild steel that is Steel jam nuts for jack bolts. ALL56068 ALL56110 ALL99052
ALL56110 ..... 1"-8 (Coarse) 1-1/2" Wrench
2" wide. Includes two 3/8" grade 8 bolts with nyloc nuts.
ALL99052 ..... 1-1/8"-12 (Fine) 1-3/8" Wrench
ALL14480 ..... 1" ALL14485 ...... 1-3/4"
ALL14481 ..... 1-1/4" ALL14486 ...... 2" Weight Jack Bolt Collars
ALL14483 ..... 1-1/2"
Steel collar typically welds onto frame or
Coil Spring Spacer chassis for installation of a threaded jack bolt.
Collar includes grease fitting.
ALL56116 ALL56098 ..... 1-1/8"-12 ALL56098
Spacer for 5" racing ALL56099 ..... 1"-8
spring welds into spring
pocket enabling chassis Weight Jack Bolt Sleeves
adjustments to street stock and other race cars that Weld-in mild steel sleeve provides a mounting
are not allowed to use weight jack bolts or threaded point for jack bolts or adjustable shock mounts.
adjusters. 3" tall spacer may be cut to desired height Sleeves are 2" long and have a 1-3/8" O.D. for
before installation. Use coil shim spacers ALL56120 and welding onto chassis tubing.
ALL56121 to make chassis adjustments.
ALL56073 ..... 1-1/8"-12, Fine Thread ALL56073
ALL56109 ..... 1"-8, Coarse Thread
Adjustable
Coil Spring Spacers Coarse Thread Nut With Sleeve
Adjustable spacers for 5" ALL56111
racing springs weld into Steel coarse thread nut with sleeve has 1"-8
spring pockets enabling ALL56118 coarse threads.
chassis adjustments to street
stock and other race cars
that are not allowed to use Weight Jack Plate
weight jack bolts. ALL56112
ALL56118 ..... All Steel Adjuster Heavy-duty steel plate has a threaded
ALL56119 ..... Steel Sleeve With ALL56119 boss welded to the center to accept
Alum. Adj. Nut jack bolts with 1"-8 coarse threads.
O.D. is 5".
Coarse Thread Weight Jack Bolts
Weight jack bolts have 1"-8 threads for quick adjustment. Slotted Upper Control Arm
Use with ALL56113, ALL56114 and ALL56115 Bracket Kit ALL60077
style spring plates. Kits contain (2) slotted brackets, (2) centered
ALL56106 ..... 8" Steel ALL56106 bushings, (2) reducer spacers for 5/8" rod end
ALL56107 ..... 11" Steel and a 1/2" bolt and nyloc nut. Offset alu-
ALL56108 ..... 8" Aluminum
minum bushings (sold separately) allow for
Weight Jack Bolts plenty of adjustment options.
With Internal Thread Components
ALL56095 ALL60078 ............ Slotted Upper Brackets (Pair)
Bolts have an internal thread, ALL60080 ........... Centered Bushings (Pair)
7/16"-20, on one end for use with ALL60081 ............ 1/8" Offset Bushings (Pair)
bolt-on and swiveler spring cups. Coarse ALL60082 ............ 1/4" Offset Bushings (Pair)
thread bolts have 1"-8 outer threads ALL56090 ALL60083 ............ 3/8" Offset Bushings (Pair)
while fine thread bolts are 1-1/8"-12. ALL60084 ........... 1/2" Offset Bushings (Pair)
Coarse Thread 1"-8 With 3/4" Hex ALL18612 ............. Reducer Spacers For 5/8" Rod End
ALL56094 ..... 4" Steel ALL16490-1 ......... Hex Head Bolt 1/2"-20 x 3", Grade 5
ALL56095 ..... 6" Steel ALL16074-10 ....... Thin Nyloc Insert Nuts 1/2"-20, Package Of 10
ALL56066 ..... 8" Steel
ALL56067 ..... 11" Steel
Fine Thread 1-1/8"-12 With 1/2" Square Drive
ALL56090 ..... 6" Aluminum
ALL56091 ..... 8" Aluminum
ALL56092 ..... 6" Steel
ALL56093 ..... 8" Steel
