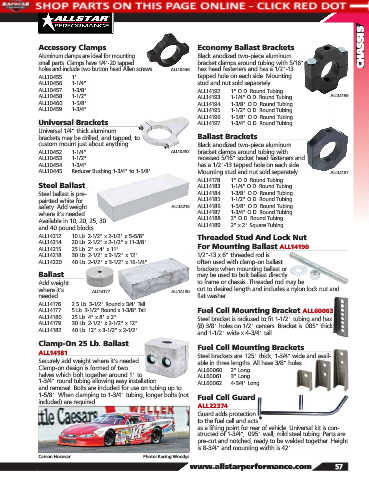

Page 59 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS

Accessory Clamps Economy Ballast Brackets
Aluminum clamps are ideal for mounting Black anodized two-piece aluminum
small parts. Clamps have 1/4"-20 tapped bracket clamps around tubing with 5/16"
holes and include two button head Allen screws. ALL10456 hex head fasteners and has a 1/2"-13
ALL10455 ..... 1" tapped hole on each side. Mounting
ALL10456 ..... 1-1/4" stud and nut sold separately.
ALL10457 ..... 1-3/8" ALL14192 ...... 1" O.D. Round Tubing
ALL10458 ..... 1-1/2" ALL14193 ...... 1-1/4" O.D. Round Tubing ALL14195
ALL10460 ..... 1-5/8" ALL14194 ...... 1-3/8" O.D. Round Tubing
ALL10459 ..... 1-3/4" ALL14195 ...... 1-1/2" O.D. Round Tubing
ALL14196 ...... 1-5/8" O.D. Round Tubing
Universal Brackets ALL14197 ...... 1-3/4" O.D. Round Tubing
Universal 1/4" thick aluminum
brackets may be drilled, and tapped, to Ballast Brackets
custom mount just about anything. Black anodized two-piece aluminum
ALL10452 ..... 1-1/4" ALL10452 bracket clamps around tubing with
ALL10453 ..... 1-1/2" recessed 5/16" socket head fasteners and
ALL10454 ..... 1-3/4" has a 1/2"-13 tapped hole on each side.
ALL10445 ..... Reducer Bushing 1-3/4" to 1-5/8" Mounting stud and nut sold separately. ALL14187
ALL14178 ...... 1" O.D. Round Tubing
Steel Ballast ALL14183 ...... 1-1/4" O.D. Round Tubing
Steel ballast is pre- ALL14184...... 1-3/8" O.D. Round Tubing
painted white for ALL14185 ...... 1-1/2" O.D. Round Tubing
safety. Add weight ALL14215 ALL14186 ...... 1-5/8" O.D. Round Tubing
where it’s needed. ALL14187 ...... 1-3/4" O.D. Round Tubing
Available in 10, 20, 25, 30 ALL14188 ...... 2" O.D. Round Tubing
and 40 pound blocks. ALL14189 ...... 2" x 2" Square Tubing
ALL14212 ...... 10 Lb. 2-1/2" x 2-1/2" x 5-5/8" Threaded Stud And Lock Nut
ALL14214 ...... 20 Lb. 2-1/2" x 2-1/2" x 11-3/8"
ALL14215 ...... 25 Lb. 2" x 4" x 11" For Mounting Ballast ALL14190
ALL14218 ...... 30 Lb. 2-1/2" x 3-1/2" x 12" 1/2"-13 x 6" threaded rod is
ALL14220 ..... 40 Lb. 2-1/2" x 3-1/2" x 16-1/4" often used with clamp-on ballast
brackets when mounting ballast or
Ballast may be used to bolt ballast directly
Add weight to frame or chassis. Threaded rod may be
where it’s ALL14177 ALL14180 cut to desired length and includes a nylon lock nut and
needed. flat washer.
ALL14176 ...... 2.5 Lb. 3-1/2" Round x 3/4" Tall
ALL14177 ...... 5 Lb. 3-1/2" Round x 1-3/8" Tall Fuel Cell Mounting Bracket ALL60063
ALL14180 ...... 25 Lb. 4" x 8" x 2" Steel bracket is radiused to fit 1-1/2" tubing and has
ALL14179 ...... 30 Lb. 2-1/2" x 2-1/2" x 12" (8) 3/8" holes on 1/2" centers. Bracket is .085" thick
ALL14182 ...... 40 Lb. 12" x 3-1/2" x 2-1/2"
and 1-1/2" wide x 4-3/4" tall.
Clamp-On 25 Lb. Ballast Fuel Cell Mounting Brackets
ALL14181 Steel brackets are .125" thick, 1-3/4" wide and avail-
Securely add weight where it’s needed. able in three lengths. All have 3/8" holes.
Clamp-on design is formed of two
halves which bolt together around 1" to ALL60060..... 2" Long
ALL60061 ..... 3" Long
1-3/4" round tubing allowing easy installation ALL60062 ..... 4-3/4" Long
and removal. Bolts are included for use on tubing up to
1-5/8". When clamping to 1-3/4" tubing, longer bolts (not Fuel Cell Guard
included) are required.
ALL22374
Guard adds protection
to the fuel cell and acts
as a lifting point for rear of vehicle. Universal kit is con-
structed of 1-3/4", .095" wall, mild steel tubing. Parts are
pre-cut and notched, ready to be welded together. Height
is 8-3/4" and mounting width is 42".
Carson Hocevar Photo: Racing Woodys
