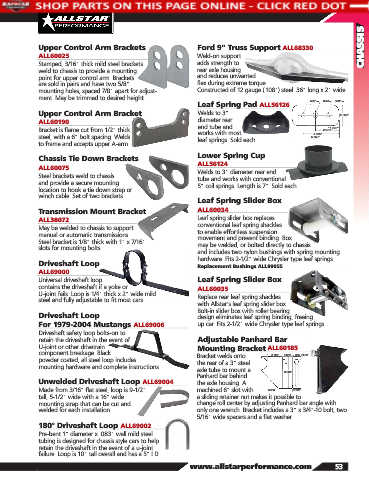

Page 55 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS

Upper Control Arm Brackets Ford 9" Truss Support ALL68330
ALL60025 Weld-on support
Stamped, 3/16" thick mild steel brackets adds strength to
weld to chassis to provide a mounting rear axle housing
point for upper control arm. Brackets and reduces unwanted
are sold in pairs and have two 5/8" flex during extreme torque.
mounting holes, spaced 7/8" apart for adjust- Constructed of 12 gauge (.108") steel. 36" long x 2" wide.
ment. May be trimmed to desired height. .500" DIA. .625" DIA. .500" DIA.
Leaf Spring Pad ALL56126
Upper Control Arm Bracket Welds to 3" 2.500"
ALL60190 diameter rear
Bracket is flame cut from 1/2" thick end tube and 2.875" 1.375"
works with most
4.375"
steel, with a 6" bolt spacing. Welds leaf springs. Sold each. 5.750"
to frame and accepts upper A-arm.
Lower Spring Cup
Chassis Tie Down Brackets
ALL56124
ALL60075
Steel brackets weld to chassis Welds to 3" diameter rear end
tube and works with conventional
and provide a secure mounting 5" coil springs. Length is 7". Sold each.
location to hook a tie down strap or
winch cable. Set of two brackets.
Leaf Spring Slider Box
Transmission Mount Bracket ALL60034
ALL38072 Leaf spring slider box replaces
May be welded to chassis to support conventional leaf spring shackles
to enable effortless suspension
manual or automatic transmissions. movement and prevent binding. Box
Steel bracket is 1/8" thick with 1" x 7/16" may be welded, or bolted directly to chassis
slots for mounting bolts.
and includes two nylon bushings with spring mounting
hardware. Fits 2-1/2" wide Chrysler type leaf springs.
Driveshaft Loop
Replacement Bushings ALL99055
ALL69000
Universal driveshaft loop Leaf Spring Slider Box
contains the driveshaft if a yoke or ALL60035
U-joint fails. Loop is 1/4" thick x 2" wide mild Replace rear leaf spring shackles
steel and fully adjustable to fit most cars.
with Allstar’s leaf spring slider box.
Bolt-in slider box with roller bearing
Driveshaft Loop design eliminates leaf spring binding, freeing
For 1979-2004 Mustangs ALL69006 up car. Fits 2-1/2" wide Chrysler type leaf springs.
Driveshaft safety loop bolts-on to
retain the driveshaft in the event of Adjustable Panhard Bar
U-joint or other drivetrain Mounting Bracket ALL60185
component breakage. Black Bracket welds onto 3.750" 6.000" x .500" SLOT
powder coated, all steel loop includes the rear of a 3" steel
mounting hardware and complete instructions.
axle tube to mount a 8.000"
Panhard bar behind
Unwelded Driveshaft Loop ALL69004 the axle housing. A
Made from 3/16" flat steel, loop is 9-1/2" machined 6" slot with 5.000" 2.250"
tall, 5-1/2" wide with a 16" wide a sliding retainer nut makes it possible to
mounting strap that can be cut and change roll center by adjusting Panhard bar angle with
welded for each installation. only one wrench. Bracket includes a 3" x 3/4"-10 bolt, two
5/16" wide spacers and a flat washer.
180° Driveshaft Loop ALL69002
Pre-bent 1" diameter x .083" wall mild steel
tubing is designed for chassis style cars to help
retain the driveshaft in the event of a u-joint
failure. Loop is 10" tall overall and has a 5" I.D.
www.allstarperformance.com 53
