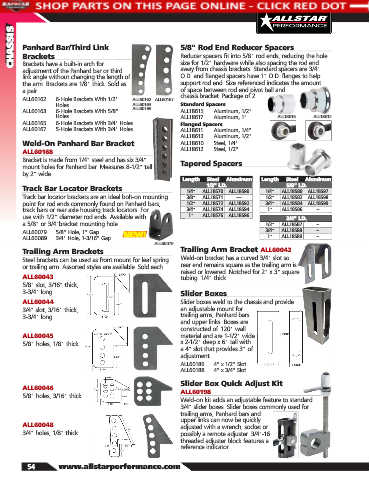

Page 56 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS Panhard Bar/Third Link 5/8" Rod End Reducer Spacers

Brackets
Reducer spacers fit into 5/8" rod ends, reducing the hole
Brackets have a built-in arch for
away from chassis brackets. Standard spacers are 3/4"
adjustment of the Panhard bar or third size for 1/2" hardware while also spacing the rod end
link angle without changing the length of O.D. and flanged spacers have 1" O.D. flanges to help
the arm. Brackets are 1/8" thick. Sold as support rod end. Size referenced indicates the amount
a pair. of space between rod end pivot ball and
chassis bracket. Package of 2.
ALL60162 ..... 6-Hole Brackets With 1/2" ALL60162 ALL60167
Holes ALL60163 Standard Spacers
ALL60163 ..... 6-Hole Brackets With 5/8" ALL60165 ALL18615 ...... Aluminum, 1/2"
Holes ALL18617 ...... Aluminum, 1" ALL18615 ALL18612
ALL60165 ..... 6-Hole Brackets With 3/4" Holes Flanged Spacers
ALL60167 ..... 5-Hole Brackets With 3/4" Holes ALL18611 ...... Aluminum, 1/4"
ALL18613 ...... Aluminum, 1/2"
Weld-On Panhard Bar Bracket ALL18610 ..... Steel, 1/4"
ALL60168 ALL18612 ...... Steel, 1/2"
Bracket is made from 1/4" steel and has six 3/4" Tapered Spacers
mount holes for Panhard bar. Measures 8-1/2" tall
by 2" wide.
Length Steel Aluminum Length Steel Aluminum
1/2" I.D. 5/8" I.D.
Track Bar Locator Brackets 1/4" ALL18570 ALL18590 1/4" ALL18580 ALL18597
Track bar locator brackets are an ideal bolt-on mounting 3/8" ALL18571 — 1/2" ALL18582 ALL18598
point for rod ends commonly found on Panhard bars, 1/2" ALL18572 ALL18592 3/4" ALL18584 ALL18599
track bars or rear axle housing track locators. For 3/4" ALL18574 ALL18594 1" ALL18586 –
use with 1/2" diameter rod ends. Available with 1" ALL18576 ALL18596 3/4" I.D.
a 5/8" or 3/4"bracket mounting hole. 1/2" ALL18587 –
ALL60079 ..... 5/8" Hole, 1" Gap NEW! 3/4" ALL18588 –
ALL60089..... 3/4" Hole, 1-3/16" Gap 1" ALL18589 –
ALL60079
Trailing Arm Brackets Trailing Arm Bracket ALL60042
Steel brackets can be used as front mount for leaf spring Weld-on bracket has a curved 3/4" slot so
or trailing arm. Assorted styles are available. Sold each. rear end remains square as the trailing arm is
raised or lowered. Notched for 2" x 3" square
ALL60043 tubing. 1/4" thick.
5/8" slot, 3/16" thick,
3-3/4" long. Slider Boxes
ALL60044 Slider boxes weld to the chassis and provide
3/4" slot, 3/16" thick, an adjustable mount for
3-3/4" long. trailing arms, Panhard bars
and upper links. Boxes are
constructed of .120" wall
ALL60045 material and are 1-1/2" wide
5/8" holes, 1/8" thick. x 2-1/2" deep x 6" tall with
a 4" slot that provides 3" of
adjustment.
ALL60186 ..... 4" x 1/2" Slot
ALL60188 ..... 4" x 3/4" Slot
Slider Box Quick Adjust Kit
ALL60046
5/8" holes, 3/16" thick. ALL60198
Weld-on kit adds an adjustable feature to standard
3/4" slider boxes. Slider boxes commonly used for
trailing arms, Panhard bars and
upper links can now be quickly
ALL60048 adjusted with a wrench, socket or
3/4" holes, 1/8" thick. possibly a remote adjuster. 3/4"-16
threaded adjuster block features a
reference indicator.

54 www.allstarperformance.com
