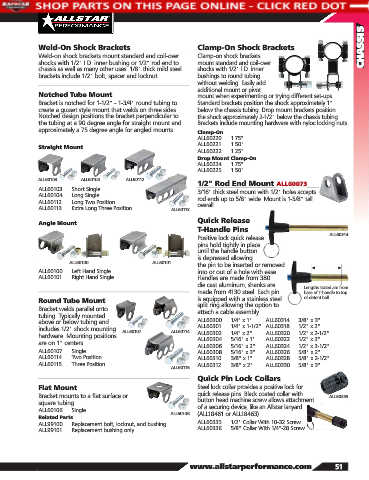

Page 53 - 2018 Allstar Performance Parts and Equipment Catalog

CHASSIS

Weld-On Shock Brackets Clamp-On Shock Brackets
Weld-on shock brackets mount standard and coil-over Clamp-on shock brackets
shocks with 1/2" I.D. inner bushing or 1/2" rod end to mount standard and coil-over
chassis as well as many other uses. 1/8" thick mild steel shocks with 1/2" I.D. inner
brackets include 1/2" bolt, spacer and locknut. bushings to round tubing
without welding. Easily add
additional mount or pivot
Notched Tube Mount mount when experimenting or trying different set-ups.
Bracket is notched for 1-1/2" - 1-3/4" round tubing to Standard brackets position the shock approximately 1"
create a gusset style mount that welds on three sides. below the chassis tubing. Drop mount brackets position
Notched design positions the bracket perpendicular to the shock approximately 2-1/2" below the chassis tubing.
the tubing at a 90 degree angle for straight mount and Brackets include mounting hardware with nyloc locking nuts.
approximately a 75 degree angle for angled mounts. Clamp-On
ALL60220 ..... 1.75"
Straight Mount ALL60221 ..... 1.50"
ALL60222 ..... 1.25"
Drop Mount Clamp-On
ALL60224 ..... 1.75"
ALL60225 ..... 1.50"
ALL60103 ALL60104 ALL60112
1/2" Rod End Mount ALL60073
ALL60103 ..... Short Single 3/16" thick steel mount with 1/2" holes accepts
ALL60104 ..... Long Single
ALL60112 ..... Long Two Position rod ends up to 5/8" wide. Mount is 1-5/8" tall
ALL60113 ..... Extra Long Three Position ALL60113 overall.
Quick Release
Angle Mount
T-Handle Pins
Positive lock quick release ALL60314
pins hold tightly in place
until the handle button
is depressed allowing
ALL60100 ALL60101 the pin to be inserted or removed
ALL60100 ..... Left Hand Single into or out of a hole with ease.
ALL60101 ..... Right Hand Single Handles are made from 380
die cast aluminum, shanks are Lengths stated are from
made from 4130 steel. Each pin base of T-handle to top
Round Tube Mount is equipped with a stainless steel of detent ball.
Bracket welds parallel onto split ring allowing the option to
attach a cable assembly.
tubing. Typically mounted
above or below tubing and ALL60300 ..... 1/4" x 1" ALL60314 ..... 3/8" x 3"
includes 1/2" shock mounting ALL60107 ALL60114 ALL60301 ..... 1/4" x 1-1/2" ALL60318 ..... 1/2" x 2"
hardware. Mounting positions ALL60302 ..... 1/4" x 2" ALL60320 ..... 1/2" x 2-1/2"
are on 1" centers. ALL60304 ..... 5/16" x 1" ALL60322..... 1/2" x 3"
ALL60324 ..... 1/2" x 3-1/2"
ALL60306 ..... 5/16" x 2"
ALL60107 ..... Single ALL60308 ..... 5/16" x 3" ALL60326 ..... 5/8" x 2"
ALL60114 ..... Two Position ALL60310 ..... 3/8" x 1" ALL60328 ..... 5/8" x 2-1/2"
ALL60115 ..... Three Position ALL60312 ..... 3/8" x 2" ALL60330 .... 5/8" x 3"
ALL60115
Quick Pin Lock Collars
Flat Mount Steel lock collar provides a positive lock for
Bracket mounts to a flat surface or quick release pins. Black coated collar with ALL60335
square tubing. button head machine screw allows attachment
ALL60106 ..... Single of a securing device, like an Allstar lanyard
ALL60106 (ALL18461 or ALL18463).
Related Parts
ALL99100 ..... Replacement bolt, locknut, and bushing ALL60335 ..... 1/2" Collar With 10-32 Screw
ALL99101 ..... Replacement bushing only ALL60336 ..... 5/8" Collar With 1/4"-28 Screw
