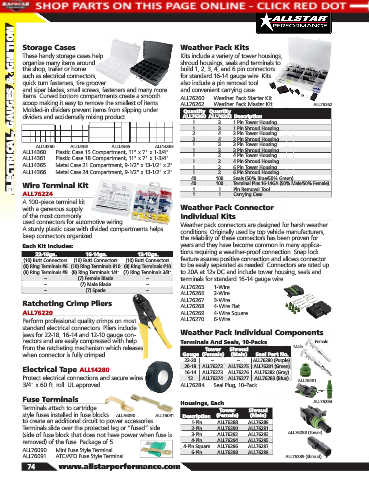

Page 76 - 2018 Allstar Performance Parts and Equipment Catalog

ELECTRICAL, GAUGES & IGNITION

Storage Cases Weather Pack Kits
These handy storage cases help Kits include a variety of tower housings,
organize many items around shroud housings, seals and terminals to
the shop, trailer or home build 1, 2, 3, 4, and 6 pin connectors
such as electrical connectors, for standard 16-14 gauge wire. Kits
quick turn fasteners, tire groover also include a pin removal tool
and siper blades, small screws, fasteners and many more and convenient carrying case.
items. Curved bottom compartments create a smooth ALL76260 ..... Weather Pack Starter Kit
scoop making it easy to remove the smallest of items. ALL76262 ..... Weather Pack Master Kit ALL76262
Molded-in dividers prevent items from slipping under Quantity Quantity
dividers and accidentally mixing product. ALL76260 ALL76262 Description
1 3 1 Pin Tower Housing
1 3 1 Pin Shroud Housing
2 4 2 Pin Tower Housing
2 4 2 Pin Shroud Housing
ALL14360 ALL14361 ALL14365 ALL14366 1 3 3 Pin Tower Housing
ALL14360 ..... Plastic Case 15 Compartment, 11" x 7" x 1-3/4" 1 1 3 2 3 Pin Shroud Housing
4 Pin Tower Housing
ALL14361 ..... Plastic Case 18 Compartment, 11" x 7" x 1-3/4" 1 2 4 Pin Shroud Housing
ALL14365 ..... Metal Case 21 Compartment, 9-1/2" x 13-1/2" x 2" 1 2 6 Pin Tower Housing
ALL14366 ..... Metal Case 24 Compartment, 9-1/2" x 13-1/2" x 2" 1 2 6 Pin Shroud Housing
40 100 Seals (50% Blue/50% Green)
Wire Terminal Kit 40 100 Terminal Pins 16-14GA (50% Male/50% Female)
1 1 Pin Removal Tool
ALL76224 1 1 Carrying Case
A 100-piece terminal kit
with a generous supply Weather Pack Connector
of the most commonly Individual Kits
used connectors for automotive wiring. Weather pack connectors are designed for harsh weather
A sturdy plastic case with divided compartments helps conditions. Originally used by top vehicle manufacturers,
keep connectors organized. the reliability of these connectors has been proven for
Each Kit Includes: years and they have become common in many applica-
tions requiring a weather-proof connection. Snap lock
22-16ga. 16-14ga. 12-10ga.
(10) Butt Connectors (10) Butt Connectors (10) Butt Connectors feature assures positive connection and allows connector
(8) Ring Terminals #6 (10) Ring Terminals #10 (8) Ring Terminals #10 to be easily separated as needed. Connectors are rated up
(8) Ring Terminals #8 (8) Ring Terminals 1/4" (7) Ring Terminals 3/8" to 20A at 12v DC and include tower housing, seals and
– (7) Female Blade – terminals for standard 16-14 gauge wire.
– (7) Male Blade – ALL76265 ..... 1-Wire
– (7) Spade –
ALL76266 ..... 2-Wire
ALL76267 ..... 3-Wire
Ratcheting Crimp Pliers ALL76268 ..... 4-Wire Flat
ALL76220 ALL76269 ..... 4-Wire Square
Perform professional quality crimps on most ALL76270 ..... 6-Wire
standard electrical connectors. Pliers include
jaws for 22-18, 16-14 and 12-10 gauge con- Weather Pack Individual Components
nectors and are easily compressed with help Terminals And Seals, 10-Packs Female
from the ratcheting mechanism which releases Tower Shroud Male
when connector is fully crimped. Gauge (Female) (Male) Seal Part No.
22-20 – – ALL76280 (Purple)
20-18 ALL76272 ALL76275 ALL76281 (Green)
Electrical Tape ALL14280 16-14 ALL76273 ALL76276 ALL76282 (Gray)
Protect electrical connections and secure wires. 12 ALL76274 ALL76277 ALL76283 (Blue) ALL76281
3/4" x 60 ft. roll. UL approved. ALL76284 ..... Seal Plug, 10-Pack

Fuse Terminals Housings, Each ALL76284
Terminals attach to cartridge
Tower Shroud
style fuses installed in fuse blocks ALL76090 ALL76091 Description (Female) (Male)
to create an additional circuit to power accessories. 1-Pin ALL76288 ALL76289
Terminals slide over the protected leg or “fused” side 2-Pin ALL76290 ALL76291 ALL76288 (Tower)
(side of fuse block that does not have power when fuse is 3-Pin ALL76292 ALL76293
removed) of the fuse. Package of 5. 4-Pin ALL76294 ALL76295
4-Pin Square ALL76296 ALL76297
ALL76090 ..... Mini Fuse Style Terminal 6-Pin ALL76298 ALL76299
ALL76091 ..... ATC/ATO Fuse Style Terminal ALL76289 (Shroud)
74 www.allstarperformance.com
