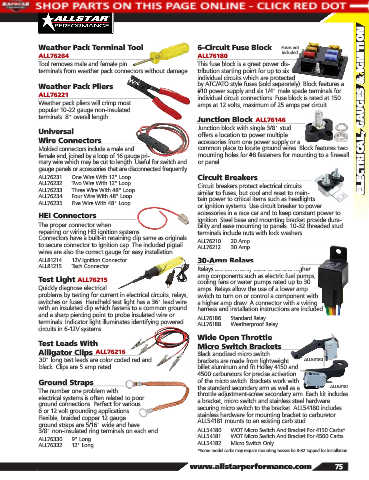

Page 77 - 2018 Allstar Performance Parts and Equipment Catalog

Weather Pack Terminal Tool 6-Circuit Fuse Block Fuses not
included.
ALL76264 ALL76180
Tool removes male and female pin This fuse block is a great power dis-
terminals from weather pack connectors without damage. tribution starting point for up to six
individual circuits which are protected
Weather Pack Pliers by ATC/ATO style fuses (sold separately). Block features a
ALL76221 #10 power supply and six 1/4" male spade terminals for
individual circuit connections. Fuse block is rated at 150
Weather pack pliers will crimp most amps at 12 volts, maximum of 25 amps per circuit.
popular 10-22 gauge non-insulated ELECTRICAL, GAUGES & IGNITION
terminals. 8" overall length.
Junction Block ALL76146
Junction block with single 3/8" stud
Universal offers a location to power multiple
Wire Connectors accessories from one power supply or a
Molded connectors include a male and common place to locate ground wires. Block features two
female end, joined by a loop of 16 gauge pri- mounting holes for #8 fasteners for mounting to a firewall
mary wire which may be cut to length. Useful for switch and or panel.
gauge panels or accessories that are disconnected frequently.
ALL76231 ..... One Wire With 12" Loop Circuit Breakers
ALL76232 ..... Two Wire With 12" Loop Circuit breakers protect electrical circuits
ALL76233 ..... Three Wire With 48" Loop similar to fuses, but cool and reset to main-
ALL76234 ..... Four Wire With 48" Loop tain power to critical items such as headlights
ALL76235 ..... Five Wire With 48" Loop
or ignition systems. Use circuit breaker to power
accessories in a race car and to keep constant power to
HEI Connectors ignition. Steel base and mounting bracket provide dura-
The proper connector when bility and ease mounting to panels. 10-32 threaded stud
repairing or wiring HEI ignition systems. terminals include nuts with lock washers.
Connectors have a built-in retaining clip same as originals ALL76210 ..... 20 Amp
to secure connector to ignition cap. The included pigtail ALL76212 ..... 30 Amp
wires are also the correct gauge for easy installation.
ALL81214 ..... 12V Ignition Connector 30-Amp Relays
ALL81215 ..... Tach Connector
Relays are commonly used to control higher
amp components such as electric fuel pumps,
Test Light ALL76215 cooling fans or water pumps rated up to 30
Quickly diagnose electrical amps. Relays allow the use of a lower amp
problems by testing for current in electrical circuits, relays, switch to turn on or control a component with
switches or fuses. Handheld test light has a 36" lead wire a higher amp draw. A connector with a wiring
with an insulated clip which fastens to a common ground harness and installation instructions are included.
and a sharp piercing point to probe insulated wire or ALL76186 ..... Standard Relay
terminals. Indicator light illuminates identifying powered ALL76188 ..... Weatherproof Relay
circuits in 6-12V systems.
Wide Open Throttle
Test Leads With Micro Switch Brackets
Alligator Clips ALL76216 Black anodized micro switch
30" long test leads are color coded red and brackets are made from lightweight ALL54180
black. Clips are 5 amp rated. billet aluminum and fit Holley 4150 and
4500 carburetors for precise activation
Ground Straps of the micro switch. Brackets work with ALL54181
The number one problem with the standard secondary arm as well as a
electrical systems is often related to poor throttle adjustment-screw secondary arm. Each kit includes
ground connections. Perfect for various a bracket, micro switch and stainless steel hardware
6 or 12 volt grounding applications. securing micro switch to the bracket. ALL54180 includes
Flexible, braided copper 12 gauge stainless hardware for mounting bracket to carburetor.
ground straps are 5/16" wide and have ALL54181 mounts to an existing carb stud.
3/8" non-insulated ring terminals on each end. ALL54180 ..... WOT Micro Switch And Bracket For 4150 Carbs*
ALL54181 ..... WOT Micro Switch And Bracket For 4500 Carbs
ALL76330 ..... 9" Long
ALL76332 ..... 12" Long ALL54182 ..... Micro Switch Only
*Some model carbs may require mounting bosses be 8-32 tapped for installation.

www.allstarperformance.com 75
