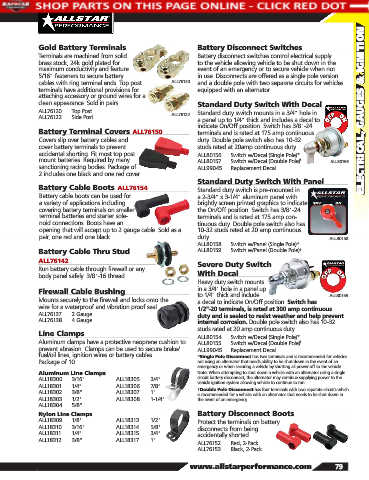

Page 81 - 2018 Allstar Performance Parts and Equipment Catalog

Gold Battery Terminals Battery Disconnect Switches
Terminals are machined from solid Battery disconnect switches control electrical supply
brass stock, 24k gold plated for to the vehicle allowing vehicle to be shut down in the
maximum conductivity and feature event of an emergency or to secure vehicle when not
5/16" fasteners to secure battery in use. Disconnects are offered as a single pole version
cables with ring terminal ends. Top post ALL76120 and a double pole with two separate circuits for vehicles
terminals have additional provisions for equipped with an alternator.
attaching accessory or ground wires for a
clean appearance. Sold in pairs. Standard Duty Switch With Decal
ALL76120 ..... Top Post ALL76122 Standard duty switch mounts in a 3/4" hole in ELECTRICAL, GAUGES & IGNITION
ALL76122 ..... Side Post a panel up to 1/4" thick and includes a decal to
indicate On/Off position. Switch has 3/8"-24
Battery Terminal Covers ALL76150 terminals and is rated at 175 amp continuous
Covers slip over battery cables and duty. Double pole switch also has 10-32
cover battery terminals to prevent studs rated at 20amp continuous duty.
accidental shorting. Fit most top post ALL80156 ..... Switch w/Decal (Single Pole)*
mount batteries. Required by many ALL80157 ..... Switch w/Decal (Double Pole) † ALL80156
sanctioning racing bodies. Package of ALL99045 ..... Replacement Decal
2 includes one black and one red cover.
Standard Duty Switch With Panel
Battery Cable Boots ALL76154 Standard duty switch is pre-mounted in
Battery cable boots can be used for a 2-3/4" x 3-1/4" aluminum panel with
a variety of applications including brightly screen printed graphics to indicate
covering battery terminals on smaller the On/Off position. Switch has 3/8"-24
terminal batteries and starter sole- terminals and is rated at 175 amp con-
noid connections. Boots have an tinuous duty. Double pole switch also has
opening that will accept up to 2 gauge cable. Sold as a 10-32 studs rated at 20 amp continuous
pair, one red and one black. duty. ALL80158
ALL80158 ..... Switch w/Panel (Single Pole)*
Battery Cable Thru Stud ALL80159 ..... Switch w/Panel (Double Pole) †
ALL76142 Severe Duty Switch
Run battery cable through firewall or any
body panel safely. 3/8"-16 thread. With Decal
Heavy duty switch mounts
Firewall Cable Bushing in a 3/4" hole in a panel up
to 1/4" thick and include
Mounts securely to the firewall and locks onto the a decal to indicate On/Off position. Switch has ALL80155
wire for a waterproof and vibration proof seal. 1/2"-20 terminals, is rated at 300 amp continuous
ALL76137 ..... 2 Gauge duty and is sealed to resist weather and help prevent
ALL76138 ..... 4 Gauge internal corrosion. Double pole switch also has 10-32
studs rated at 20 amp continuous duty.
Line Clamps ALL80154 ..... Switch w/Decal (Single Pole)*
Aluminum clamps have a protective neoprene cushion to ALL80155 ..... Switch w/Decal (Double Pole) †
prevent abrasion. Clamps can be used to secure brake/ ALL99045 ..... Replacement Decal
fuel/oil lines, ignition wires or battery cables. *Single Pole Disconnect has two terminals and is recommended for vehicles
Package of 10. not using an alternator that needs ability to be shut down in the event of an
emergency or when securing a vehicle by shutting all power off to the vehicle.
Aluminum Line Clamps Note: When attempting to shut down a vehicle with an alternator using a single
ALL18300 ..... 3/16" ALL18305 ...... 3/4" circuit battery disconnect, the alternator may continue supplying power to the
ALL18301 ..... 1/4" ALL18306 ...... 7/8" vehicle ignition system allowing vehicle to continue to run.
ALL18302 ..... 3/8" ALL18307 ...... 1" †Double Pole Disconnect has four terminals with two separate circuits which
is recommended for a vehicle with an alternator that needs to be shut down in
ALL18303 ..... 1/2" ALL18308 ...... 1-1/4" the event of an emergency.
ALL18304 5/8"
Nylon Line Clamps Battery Disconnect Boots
ALL18309 ..... 1/8" ALL18313 ...... 1/2" Protect the terminals on battery
ALL18310 ..... 3/16" ALL18314 ...... 5/8" disconnects from being
ALL18311 ...... 1/4" ALL18315 ...... 3/4" accidentally shorted.
ALL18312 ...... 3/8" ALL18317 ...... 1"
ALL76152 ..... Red, 2-Pack
ALL76153 ..... Black, 2-Pack

www.allstarperformance.com 79
