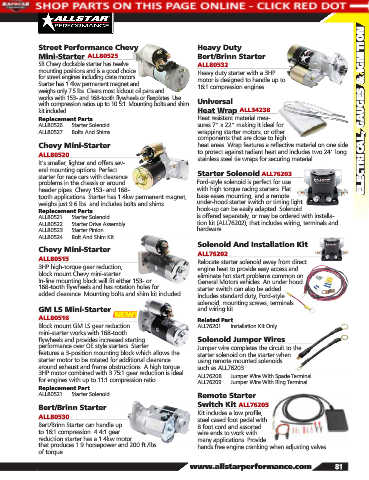

Page 83 - 2018 Allstar Performance Parts and Equipment Catalog

Street Performance Chevy Heavy Duty
Mini-Starter ALL80525 Bert/Brinn Starter
SB Chevy clockable starter has twelve ALL80532
mounting positions and is a good choice Heavy duty starter with a 3HP
for street engines including crate motors. motor is designed to handle up to
Starter has 1.4kw permanent magnet and 16:1 compression engines.
weighs only 7.5 lbs. Clears most kickout oil pans and
works with 153- and 168-tooth flywheels or flexplates. Use
with compression ratios up to 10.5:1. Mounting bolts and shim Universal
kit included. Heat Wrap ALL34238 ELECTRICAL, GAUGES & IGNITION
Replacement Parts Heat resistant material mea-
ALL80526 ..... Starter Solenoid sures 7" x 22" making it ideal for
ALL80527 ..... Bolts And Shims wrapping starter motors, or other
components that are close to high
Chevy Mini-Starter heat areas. Wrap features a reflective material on one side
ALL80520 to protect against radiant heat and includes two 24" long
It’s smaller, lighter and offers sev- stainless steel tie wraps for securing material.
eral mounting options. Perfect
starter for race cars with clearance Starter Solenoid ALL76203
problems in the chassis or around Ford-style solenoid is perfect for use
header pipes. Chevy 153- and 168- with high torque racing starters. Flat
tooth applications. Starter has 1.4kw permanent magnet, base eases mounting, and a remote
weighs just 9.6 lbs. and includes bolts and shims. under-hood starter switch or timing light
Replacement Parts hook-up can be easily adapted. Solenoid
ALL80521 ..... Starter Solenoid is offered separately, or may be ordered with installa-
ALL80522 ..... Starter Drive Assembly tion kit (ALL76202), that includes wiring, terminals and
ALL80523 ..... Starter Pinion hardware.
ALL80524 ..... Bolt And Shim Kit
Solenoid And Installation Kit
Chevy Mini-Starter ALL76202
ALL80515 Relocate starter solenoid away from direct
3HP high-torque gear reduction, engine heat to provide easy access and
block mount Chevy mini-starter. eliminate hot start problems common on
In-line mounting block will fit either 153- or General Motors vehicles. An under hood
168-tooth flywheels and has rotation holes for starter switch can also be added.
added clearance. Mounting bolts and shim kit included. Includes standard duty, Ford-style
solenoid, mounting screws, terminals
GM LS Mini-Starter and wiring kit.
ALL80516 NEW! Related Part
Block mount GM LS gear reduction ALL76201 ..... Installation Kit Only
mini-starter works with 168-tooth
flywheels and provides increased starting Solenoid Jumper Wires
performance over OE style starters. Starter Jumper wire completes the circuit to the
features a 3-position mounting block which allows the starter solenoid on the starter when
starter motor to be rotated for additional clearance using remote mounted solenoids
around exhaust and frame obstructions. A high torque such as ALL76203.
3HP motor combined with 3.75:1 gear reduction is ideal ALL76208 ..... Jumper Wire With Spade Terminal
for engines with up to 11:1 compression ratio. ALL76209 ..... Jumper Wire With Ring Terminal
Replacement Part
ALL80521 ..... Starter Solenoid Remote Starter
Bert/Brinn Starter Switch Kit ALL76205
ALL80530 Kit includes a low profile,
steel cased foot pedal with
Bert/Brinn Starter can handle up 8 foot cord and assorted
to 16:1 compression. 4.4:1 gear wire ends to work with
reduction starter has a 1.4kw motor many applications. Provide
that produces 1.9 horsepower and 200 ft./lbs hands free engine cranking when adjusting valves.
of torque.
