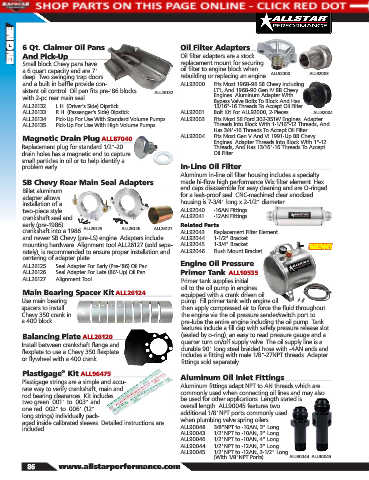

Page 88 - 2018 Allstar Performance Parts and Equipment Catalog

ENGINE 6 Qt. Claimer Oil Pans Oil Filter Adapters

And Pick-Up
Oil filter adapters are a stock
Small block Chevy pans have
oil filter to engine block when
a 6 quart capacity and are 7" replacement mount for securing ALL92000 ALL92003
deep. Two swinging trap doors rebuilding or replacing an engine.
and a built in baffle provide con- ALL92000 ..... Fits Most 1968-96 SB Chevy Including
sistent oil control. Oil pan fits pre-’86 blocks ALL26132 LT1, And 1968-90 Gen IV BB Chevy
with 2-pc rear main seal. Engines. Aluminum Adapter With
Bypass Valve Bolts To Block And Has
ALL26132 ..... L.H. (Driver’s Side) Dipstick 13/16"-16 Threads To Accept Oil Filter
ALL26133 ..... R.H. (Passenger’s Side) Dipstick ALL92001 ..... Bolt Kit For ALL92000, 2-Pieces ALL92004
ALL26134 ..... Pick-Up For Use With Standard Volume Pumps ALL92003 ..... Fits Most SB Ford 302-351W Engines. Adapter
ALL26135 ..... Pick-Up For Use With High Volume Pumps Threads Into Block With 1-1/16"-12 Threads, And
Has 3/4"-16 Threads To Accept Oil Filter
ALL92004 ..... Fits Most Gen V And VI 1991-Up BB Chevy
Magnetic Drain Plug ALL87040
Engines. Adapter Threads Into Block With 1"-12
Replacement plug for standard 1/2"-20 Threads, And Has 13/16"-16 Threads To Accept
drain holes has a magnetic end to capture Oil Filter
small particles in oil or to help identify a
problem early. In-Line Oil Filter
Aluminum in-line oil filter housing includes a specialty
SB Chevy Rear Main Seal Adapters made hi-flow high performance Wix filter element. Hex
Billet aluminum end caps disassemble for easy cleaning and are O-ringed
adapter allows for a leak-proof seal. CNC-machined clear anodized
installation of a housing is 7-3/4" long x 2-1/2" diameter.
two-piece style ALL92040 ..... -16AN Fittings
crankshaft seal and ALL92041 ..... -12AN Fittings
early (pre-1986) Related Parts
crankshaft into a 1986 ALL26125 ALL26126 ALL26127 ALL92043 ..... Replacement Filter Element
and newer SB Chevy (pre-LS) engine. Adapters include ALL92044 ..... 1-1/2" Bracket
mounting hardware. Alignment tool ALL26127 (sold sepa- ALL92045 ..... 1-3/4" Bracket NEW!
rately), is recommended to ensure proper installation and ALL92046 ..... Flush Mount Bracket
centering of adapter plate.
ALL26125 ..... Seal Adapter For Early (Pre-’86) Oil Pan Engine Oil Pressure
ALL26126 ..... Seal Adapter For Late (86'-Up) Oil Pan Primer Tank ALL10535
ALL26127 ..... Alignment Tool Primer tank supplies initial
oil to the oil pump in engines
Main Bearing Spacer Kit ALL26124 equipped with a crank driven oil
Use main bearing pump. Fill primer tank with engine oil
spacers to install then apply compressed air to force the fluid throughout
Chevy 350 crank in the engine via the oil pressure sender/switch port to
a 400 block. pre-lube the entire engine including the oil pump. Tank
features include a fill cap with safety pressure release slot
Balancing Plate ALL26120 (sealed by o-ring), an easy to read pressure gauge and a
Install between crankshaft flange and quarter turn on/off supply valve. The oil supply line is a
flexplate to use a Chevy 350 flexplate durable 90" long steel braided hose with -4AN ends and
or flywheel with a 400 crank. includes a fitting with male 1/8"-27NPT threads. Adapter
fittings sold separately.
®
Plastigage Kit ALL96475 Aluminum Oil Inlet Fittings
Plastigage strings are a simple and accu-
rate way to verify crankshaft, main and Aluminum fittings adapt NPT to AN threads which are
rod bearing clearances. Kit includes commonly used when connecting oil lines and may also
two green .001" to .003" and be used for other applications. Length stated is
one red .002" to .006" (12" overall length. ALL90045 features two
long strings) individually pack- additional 1/8"NPT ports commonly used
aged inside calibrated sleeves. Detailed instructions are when plumbing valve spring oilers.
included. ALL90048 .... 3/8"NPT to -10AN, 3" Long
ALL90043 .... 1/2"NPT to -10AN, 3" Long
ALL90046 .... 1/2"NPT to -10AN, 4" Long
ALL90044 .... 1/2"NPT to -12AN, 3" Long
ALL90045 .... 1/2"NPT to -12AN, 3-1/2" Long
(With 1/8"NPT Ports) ALL90044 ALL90045
