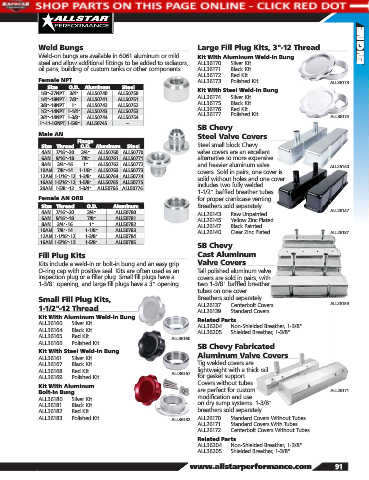

Page 93 - 2018 Allstar Performance Parts and Equipment Catalog

ENGINE

Weld Bungs Large Fill Plug Kits, 3"-12 Thread
Weld-on bungs are available in 6061 aluminum or mild Kit With Aluminum Weld-In Bung
steel and allow additional fittings to be added to radiators, ALL36170 ..... Silver Kit
oil pans, building of custom tanks or other components. ALL36171 ..... Black Kit
ALL36172 ..... Red Kit
Female NPT ALL36173 ..... Polished Kit ALL36173
Size O.D. Aluminum Steel Kit With Steel Weld-In Bung
1/8"-27NPT 3/4" ALL50740 ALL50750 ALL36174 ..... Silver Kit
1/4"-18NPT 7/8" ALL50741 ALL50751 ALL36175 ..... Black Kit
3/8"-18NPT 1" ALL50742 ALL50752 ALL36176 ..... Red Kit
1/2"-14NPT 1-1/4" ALL50743 ALL50753 ALL36177 ..... Polished Kit
3/4"-14NPT 1-3/8" ALL50744 ALL50754 ALL36174
1"-11-1/2NPT 1-5/8" ALL50745 –
SB Chevy
Male AN Steel Valve Covers
Flange
Size Thread O.D. Aluminum Steel Steel small block Chevy
4AN 7/16"-20 3/4" ALL50760 ALL50770 valve covers are an excellent
6AN 9/16"-18 7/8" ALL50761 ALL50771 alternative to more expensive
8AN 3/4"-16 1" ALL50762 ALL50772 and heavier aluminum valve ALL26140
10AN 7/8"-14 1-1/8" ALL50763 ALL50773 covers. Sold in pairs, one cover is
12AN 1-1/16"-12 1-3/8" ALL50764 ALL50774 solid without holes and one cover
16AN 1-5/16"-12 1-5/8" ALL50765 ALL50775 includes two fully welded
20AN 1-5/8"-12 1-3/4" ALL50766 ALL50776
1-1/2" baffled breather tubes
Female AN ORB for proper crankcase venting.
Size Thread O.D. Aluminum Breathers sold separately.
4AN 7/16"-20 3/4" ALL50780 ALL26143 ..... Raw Unpainted ALL26147
6AN 9/16"-18 7/8" ALL50781 ALL26145 ..... Yellow Zinc Plated
8AN 3/4"-16 1" ALL50782 ALL26147 ..... Black Painted
10AN 7/8"-14 1-1/8" ALL50783 ALL26140 ..... Clear Zinc Plated ALL26137
12AN 1-1/16"-12 1-3/8" ALL50784
16AN 1-5/16"-12 1-5/8" ALL50785 SB Chevy
Fill Plug Kits Cast Aluminum
Kits include a weld-in or bolt-in bung and an easy grip Valve Covers
O-ring cap with positive seal. Kits are often used as an Tall polished aluminum valve
inspection plug or a filler plug. Small fill plugs have a covers are sold in pairs, with
1-3/8" opening, and large fill plugs have a 3" opening. two 1-3/8" baffled breather
tubes on one cover.
Small Fill Plug Kits, Breathers sold separately. ALL26139
1-1/2"-12 Thread ALL26137 ..... Centerbolt Covers
ALL26139 ..... Standard Covers
Kit With Aluminum Weld-In Bung Related Parts
ALL36160 ..... Silver Kit ALL36204 ..... Non-Shielded Breather, 1-3/8"
ALL36164 ..... Black Kit ALL36205 ..... Shielded Breather, 1-3/8"
ALL36165 ..... Red Kit ALL36160
ALL36166 ..... Polished Kit
SB Chevy Fabricated
Kit With Steel Weld-In Bung Aluminum Valve Covers
ALL36161 ..... Silver Kit
ALL36167 ..... Black Kit Tig welded covers are
ALL36168 ..... Red Kit ALL36167 lightweight with a thick rail
ALL36169 ..... Polished Kit for gasket support.
Covers without tubes
Kit With Aluminum are perfect for custom
Bolt-In Bung ALL26171
ALL36180 ..... Silver Kit modification and use
ALL36181 ..... Black Kit on dry sump systems. 1-3/8"
ALL36182 ..... Red Kit breathers sold separately.
ALL36183 ..... Polished Kit ALL36182 ALL26170 ..... Standard Covers Without Tubes
ALL26171 ..... Standard Covers With Tubes
ALL26172 ..... Centerbolt Covers Without Tubes
Related Parts
ALL36204 ..... Non-Shielded Breather, 1-3/8"
ALL36205 ..... Shielded Breather, 1-3/8"
