CAVITE STATE UNIVERSITY
T3 CAMPUS
Department of Information Technology ITEC 90 – Network Fundamentals

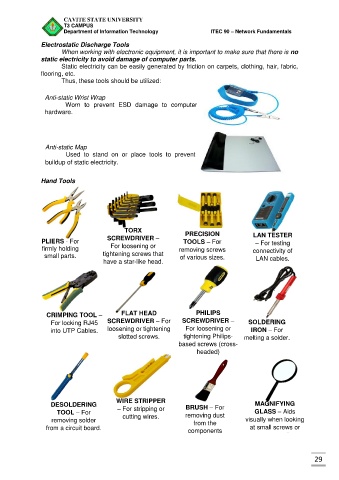

Electrostatic Discharge Tools
When working with electronic equipment, it is important to make sure that there is no
static electricity to avoid damage of computer parts.
Static electricity can be easily generated by friction on carpets, clothing, hair, fabric,
flooring, etc.
Thus, these tools should be utilized:

Anti-static Wrist Wrap
Worn to prevent ESD damage to computer
hardware.

Anti-static Map
Used to stand on or place tools to prevent
buildup of static electricity.

Hand Tools

TORX PRECISION LAN TESTER
PLIERS - For SCREWDRIVER – TOOLS – For
firmly holding For loosening or – For testing
small parts. tightening screws that removing screws connectivity of
have a star-like head. of various sizes. LAN cables.

FLAT HEAD PHILIPS
CRIMPING TOOL – SCREWDRIVER – For SCREWDRIVER –
For locking RJ45 loosening or tightening For loosening or SOLDERING
into UTP Cables. slotted screws. tightening Philips- IRON – For
based screws (cross- melting a solder.

headed)

WIRE STRIPPER
DESOLDERING – For stripping or BRUSH – For MAGNIFYING
TOOL – For removing dust GLASS – Aids
removing solder cutting wires. from the visually when looking
from a circuit board. components at small screws or
components

29
