Image Specification Dialog

7 A preview of the selected Image images. See “Dialog Preview Panes” on page
displays here. The Glass House 42.
Rendering Techniques is not available for

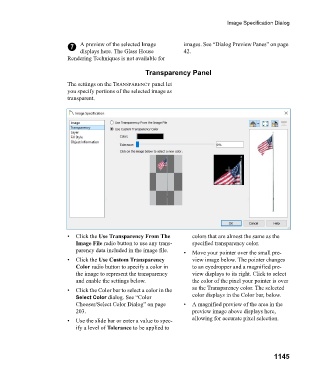

Transparency Panel
The settings on the TRANSPARENCY panel let
you specify portions of the selected image as
transparent.

• Click the Use Transparency From The colors that are almost the same as the
Image File radio button to use any trans- specified transparency color.
parency data included in the image file. • Move your pointer over the small pre-
• Click the Use Custom Transparency view image below. The pointer changes
Color radio button to specify a color in to an eyedropper and a magnified pre-
the image to represent the transparency view displays to its right. Click to select
and enable the settings below. the color of the pixel your pointer is over
• Click the Color bar to select a color in the as the Transparency color. The selected
Select Color dialog. See “Color color displays in the Color bar, below.
Chooser/Select Color Dialog” on page • A magnified preview of the area in the
203. preview image above displays here,
• Use the slide bar or enter a value to spec- allowing for accurate pixel selection.
ify a level of Tolerance to be applied to

1145
