Chief Architect X10 Reference Manual

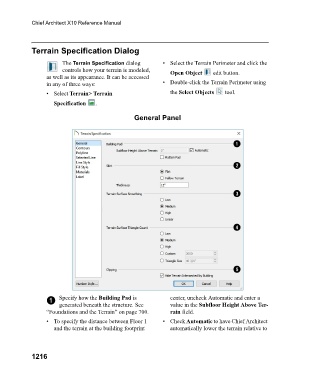

Terrain Specification Dialog
The Terrain Specification dialog • Select the Terrain Perimeter and click the
controls how your terrain is modeled, Open Object edit button.
as well as its appearance. It can be accessed
in any of three ways: • Double-click the Terrain Perimeter using
• Select Terrain> Terrain the Select Objects tool.
Specification .
General Panel
1 Specify how the Building Pad is center, uncheck Automatic and enter a
generated beneath the structure. See value in the Subfloor Height Above Ter-
“Foundations and the Terrain” on page 700. rain field.
• To specify the distance between Floor 1 • Check Automatic to have Chief Architect
and the terrain at the building footprint automatically lower the terrain relative to
1216
