Chief Architect X10 Reference Manual

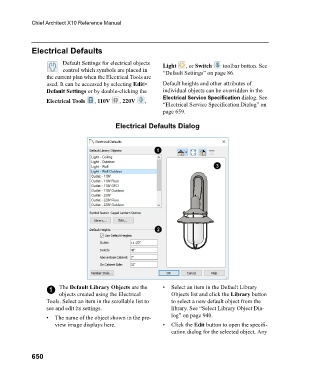

Electrical Defaults

Default Settings for electrical objects Light , or Switch toolbar button. See
control which symbols are placed in “Default Settings” on page 86.
the current plan when the Electrical Tools are
used. It can be accessed by selecting Edit> Default heights and other attributes of
Default Settings or by double-clicking the individual objects can be overridden in the
Electrical Service Specification dialog. See
Electrical Tools , 110V , 220V ,
“Electrical Service Specification Dialog” on
page 659.

Electrical Defaults Dialog

1 The Default Library Objects are the • Select an item in the Default Library
objects created using the Electrical Objects list and click the Library button
Tools. Select an item in the scrollable list to to select a new default object from the
see and edit its settings. library. See “Select Library Object Dia-
• The name of the object shown in the pre- log” on page 940.
view image displays here. • Click the Edit button to open the specifi-
cation dialog for the selected object. Any

650
