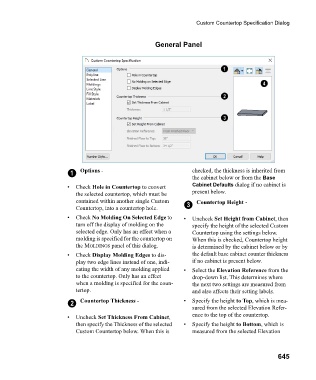

Page 645 - Chief Architect Reference Manual

Custom Countertop Specification Dialog

General Panel

1 Options - checked, the thickness is inherited from
the cabinet below or from the Base
• Check Hole in Countertop to convert Cabinet Defaults dialog if no cabinet is
the selected countertop, which must be present below.
contained within another single Custom Countertop Height -
Countertop, into a countertop hole. 3
• Check No Molding On Selected Edge to • Uncheck Set Height from Cabinet, then
turn off the display of molding on the specify the height of the selected Custom
selected edge. Only has an effect when a Countertop using the settings below.
molding is specified for the countertop on When this is checked, Countertop height
the MOLDINGS panel of this dialog. is determined by the cabinet below or by
• Check Display Molding Edges to dis- the default base cabinet counter thickness
play two edge lines instead of one, indi- if no cabinet is present below.
cating the width of any molding applied • Select the Elevation Reference from the
to the countertop. Only has an effect drop-down list. This determines where
when a molding is specified for the coun- the next two settings are measured from
tertop. and also affects their setting labels.

2 Countertop Thickness - • Specify the height to Top, which is mea-
sured from the selected Elevation Refer-
• Uncheck Set Thickness From Cabinet, ence to the top of the countertop.
then specify the Thickness of the selected • Specify the height to Bottom, which is
Custom Countertop below. When this is measured from the selected Elevation

645
