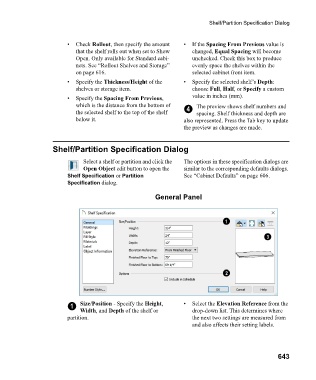

Shelf/Partition Specification Dialog

• Check Rollout, then specify the amount • I f t h e Spacing From Previous value is
that the shelf rolls out when set to Show changed, Equal Spacing will become
Open. Only available for Standard cabi- unchecked. Check this box to produce
nets. See “Rollout Shelves and Storage” evenly space the shelves within the
on page 616. selected cabinet front item.
• Specify the Thickness/Height of the • Specify the selected shelf’s Depth:
shelves or storage item. choose Full, Half, or Specify a custom
• Specify the Spacing From Previous, value in inches (mm).
which is the distance from the bottom of The preview shows shelf numbers and
the selected shelf to the top of the shelf 4 spacing. Shelf thickness and depth are
below it. also represented. Press the Tab key to update
the preview as changes are made.

Shelf/Partition Specification Dialog

Select a shelf or partition and click the The options in these specification dialogs are
Open Object edit button to open the similar to the corresponding defaults dialogs.
Shelf Specification or Partition See “Cabinet Defaults” on page 606.
Specification dialog.

General Panel

1 Size/Position - Specify the Height, • Select the Elevation Reference from the
Width, and Depth of the shelf or drop-down list. This determines where
partition. the next two settings are measured from
and also affects their setting labels.
