Chief Architect X10 Reference Manual

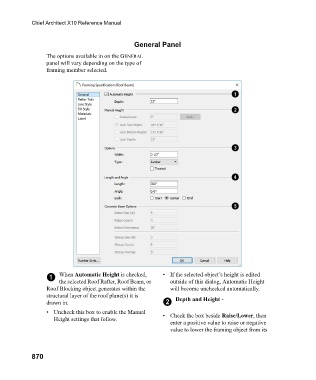

General Panel
The options available in on the GENERAL
panel will vary depending on the type of
framing member selected.

1 When Automatic Height is checked, • If the selected object’s height is edited
the selected Roof Rafter, Roof Beam, or outside of this dialog, Automatic Height
Roof Blocking object generates within the will become unchecked automatically.
structural layer of the roof plane(s) it is Depth and Height -
drawn in. 2
• Uncheck this box to enable the Manual • Check the box beside Raise/Lower, then
Height settings that follow.
enter a positive value to raise or negative
value to lower the framing object from its

870
