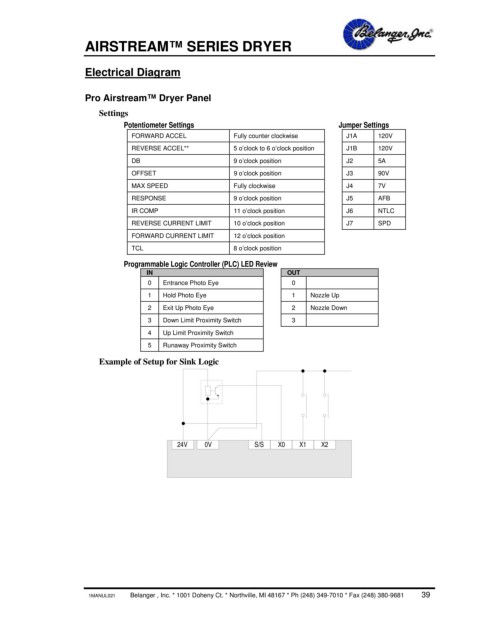

AIRSTREAM™ SERIES DRYER
Electrical Diagram
Pro Airstream™ Dryer Panel
Settings
Potentiometer Settings Jumper Settings
FORWARD ACCEL Fully counter clockwise J1A 120V
REVERSE ACCEL** 5 o’clock to 6 o’clock position J1B 120V
DB 9 o’clock position J2 5A
OFFSET 9 o’clock position J3 90V
MAX SPEED Fully clockwise J4 7V
RESPONSE 9 o’clock position J5 AFB
IR COMP 11 o’clock position J6 NTLC
REVERSE CURRENT LIMIT 10 o’clock position J7 SPD
FORWARD CURRENT LIMIT 12 o’clock position
TCL 8 o’clock position
Programmable Logic Controller (PLC) LED Review
IN OUT
0 Entrance Photo Eye 0
1 Hold Photo Eye 1 Nozzle Up
2 Exit Up Photo Eye 2 Nozzle Down
3 Down Limit Proximity Switch 3
4 Up Limit Proximity Switch
5 Runaway Proximity Switch
Example of Setup for Sink Logic
24V 0V S/S X0 X1 X2
