Page 38 - SideWinder®
P. 38
®
SideWinder
Maintenance
Parts Identification

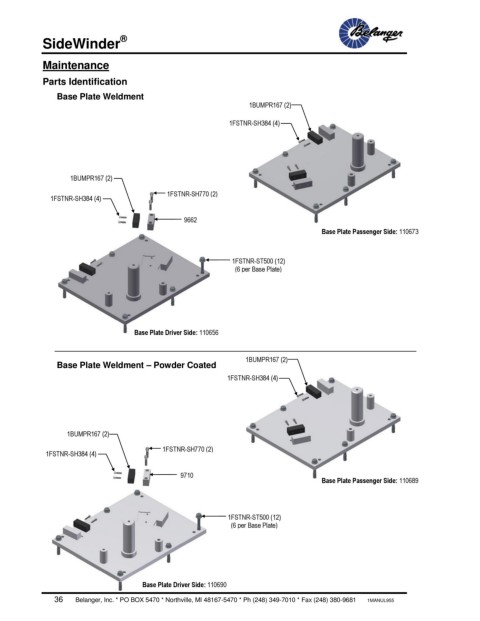

Base Plate Weldment
1BUMPR167 (2)
1FSTNR-SH384 (4)
1BUMPR167 (2)
1FSTNR-SH770 (2)
1FSTNR-SH384 (4)
9662
Base Plate Passenger Side: 110673
1FSTNR-ST500 (12)
(6 per Base Plate)
Base Plate Driver Side: 110656
1BUMPR167 (2)
Base Plate Weldment – Powder Coated
1FSTNR-SH384 (4)
1BUMPR167 (2)
1FSTNR-SH770 (2)
1FSTNR-SH384 (4)
9710
Base Plate Passenger Side: 110689
1FSTNR-ST500 (12)
(6 per Base Plate)
Base Plate Driver Side: 110690
36 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL955
