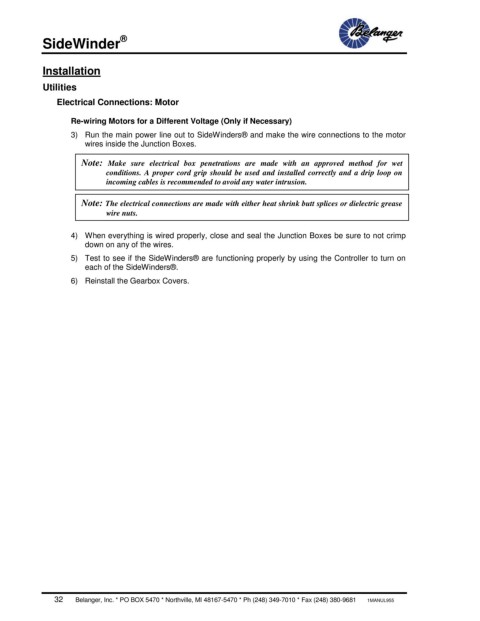

P. 34

®
            SideWinder

            Installation

            Utilities

               Electrical Connections: Motor
                   Re-wiring Motors for a Different Voltage (Only if Necessary)

                   3)  Run the main power line out to SideWinders® and make the wire connections to the motor
                       wires inside the Junction Boxes.

                      Note:  Make  sure  electrical  box  penetrations  are  made  with  an  approved  method  for  wet

                            conditions. A proper cord grip should be used and installed correctly and a drip loop on
                            incoming cables is recommended to avoid any water intrusion.

                      Note: The electrical connections are made with either heat shrink butt splices or dielectric grease

                            wire nuts.

                   4)  When everything is wired properly, close and seal the Junction Boxes be sure to not crimp
                       down on any of the wires.
                   5)  Test to see if the SideWinders® are functioning properly by using the Controller to turn on
                       each of the SideWinders®.
                   6)  Reinstall the Gearbox Covers.















































               32       Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681       1MANUL955
