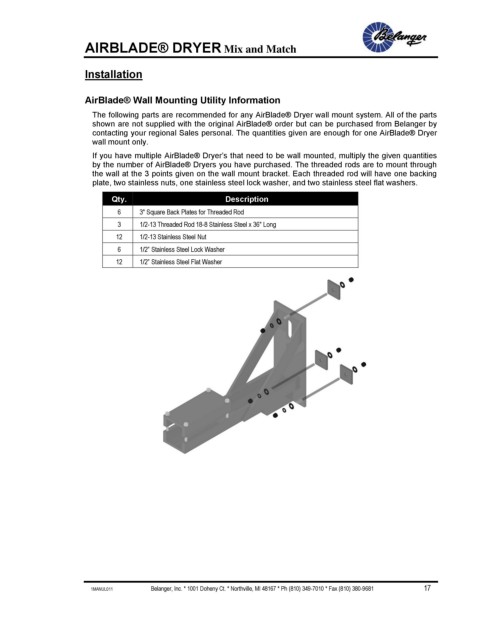

AIRBLADE® DRYER Mix and Match
Installation
AirBlade® Wall Mounting Utility Information
The following parts are recommended for any AirBlade® Dryer wall mount system. All of the parts
shown are not supplied with the original AirBlade® order but can be purchased from Belanger by
contacting your regional Sales personal. The quantities given are enough for one AirBlade® Dryer
wall mount only.
If you have multiple AirBlade® Dryer’s that need to be wall mounted, multiply the given quantities
by the number of AirBlade® Dryers you have purchased. The threaded rods are to mount through
the wall at the 3 points given on the wall mount bracket. Each threaded rod will have one backing
plate, two stainless nuts, one stainless steel lock washer, and two stainless steel flat washers.
Qty. Description
6 3" Square Back Plates for Threaded Rod
3 1/2-13 Threaded Rod 18-8 Stainless Steel x 36" Long
12 1/2-13 Stainless Steel Nut
6 1/2” Stainless Steel Lock Washer
12 1/2” Stainless Steel Flat Washer
