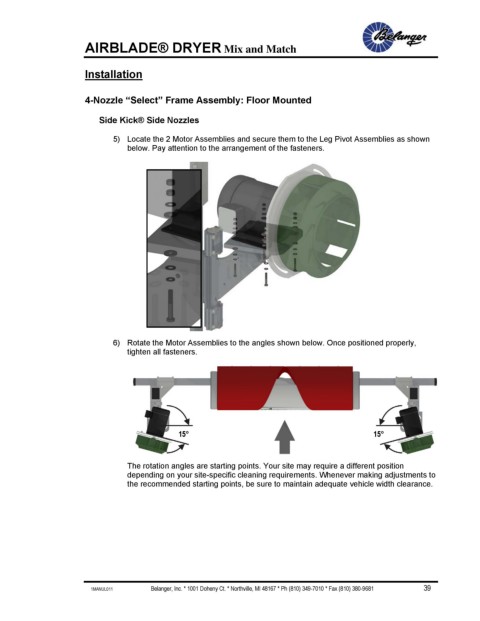

AIRBLADE® DRYER Mix and Match



                       Installation


                       4-Nozzle “Select” Frame Assembly: Floor Mounted

                          Side Kick® Side Nozzles

                              5)  Locate the 2 Motor Assemblies and secure them to the Leg Pivot Assemblies as shown
                                 below. Pay attention to the arrangement of the fasteners.




























                              6)  Rotate the Motor Assemblies to the angles shown below. Once positioned properly,
                                 tighten all fasteners.











                                              15°                                               15°



                                 The rotation angles are starting points. Your site may require a different position
                                 depending on your site-specific cleaning requirements. Whenever making adjustments to
                                 the recommended starting points, be sure to maintain adequate vehicle width clearance.
