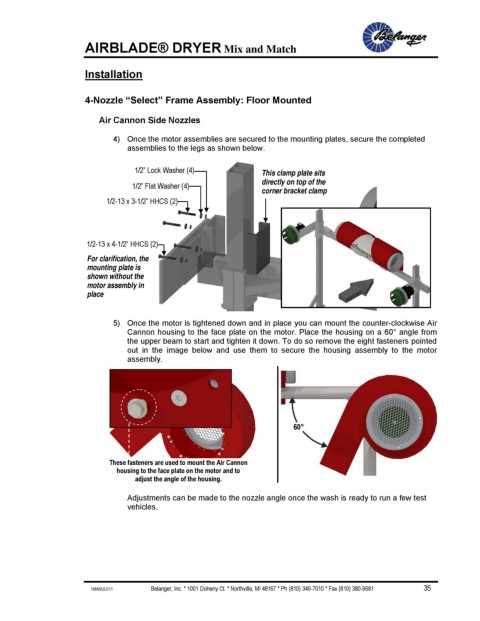

AIRBLADE® DRYER Mix and Match

Installation

4-Nozzle “Select” Frame Assembly: Floor Mounted

Air Cannon Side Nozzles

4) Once the motor assemblies are secured to the mounting plates, secure the completed
assemblies to the legs as shown below.

1/2” Lock Washer (4) This clamp plate sits
directly on top of the
1/2” Flat Washer (4)
corner bracket clamp
1/2-13 x 3-1/2” HHCS (2)

1/2-13 x 4-1/2” HHCS (2)
For clarification, the
mounting plate is
shown without the
motor assembly in
place

5) Once the motor is tightened down and in place you can mount the counter-clockwise Air
Cannon housing to the face plate on the motor. Place the housing on a 60° angle from
the upper beam to start and tighten it down. To do so remove the eight fasteners pointed
out in the image below and use them to secure the housing assembly to the motor
assembly.

60°

These fasteners are used to mount the Air Cannon
housing to the face plate on the motor and to
adjust the angle of the housing.

Adjustments can be made to the nozzle angle once the wash is ready to run a few test
vehicles.
